Release Info
| Catalog ID | HVC-MJ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 27, 1983 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Famicom Controller |

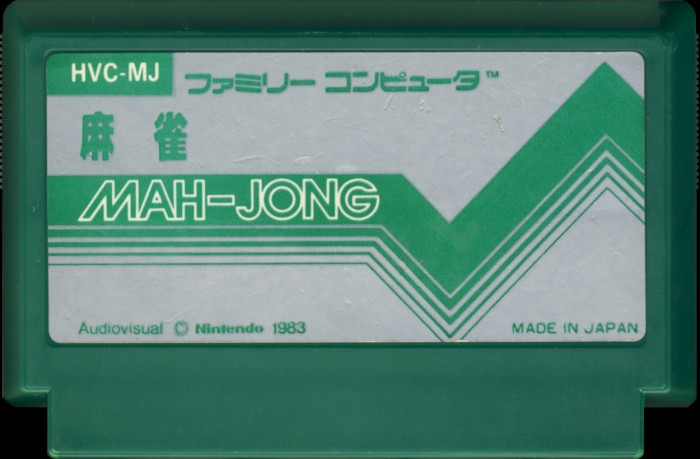

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-MJ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

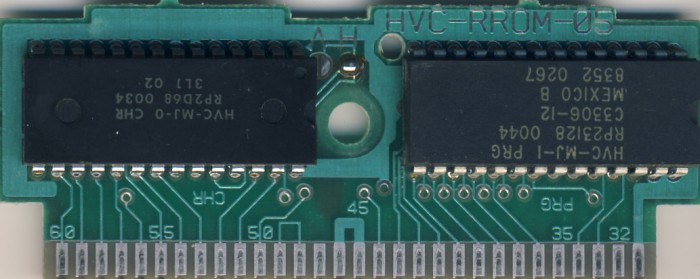

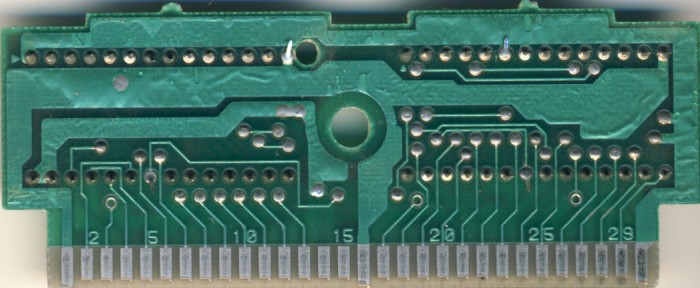

PCB Properties
| Name | HVC-RROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8352 - 8431 (2) |
| Est First Run | December 1983 |
| PCB Class | HVC-RROM |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-MJ-1 PRG | 16 KB | F86D8D8A | 11 |
| CHR0 | HVC-MJ-0 CHR | 8 KB | E1E96E97 | 1 |
| N/A | ROMs Combined | 24 KB | A9842027 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | _UnkRicohMexico | C3306 12 | Mask ROM 16 KB | DIP-28 | 8352 0267 | 8352 | RP23128 0044 |
| CHR | Ricoh | RP2D68 0034 | Mask ROM 8 KB | DIP-28 | 3L1 02 | 8344 |
