Release Info
| Catalog ID | NES-GG-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1986 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 2 |
| Peripherals | NES Controller |

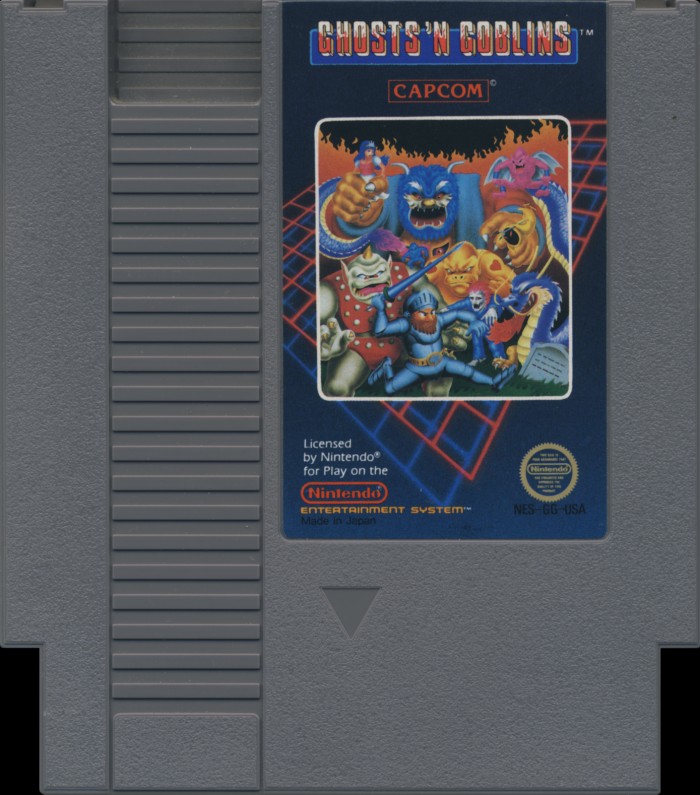

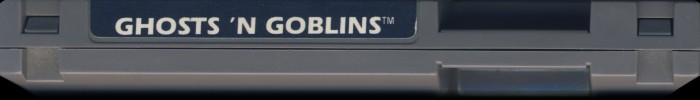

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GG-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 12 |
PCB Properties
| Name | NES-UN-ROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8715 - 8822 (3) |
| Est First Run | April 1987 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-GG-0 PRG | 128 KB | B4E4879E | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2310 52 | Mask ROM 128 KB | DIP-28 | 8818 E | 8818 | |
| CHR RAM | Fujitsu | MB8464-15L | SRAM 8 KB | DIP-28 | 8812 KT84 | 8812 | BA |
| CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8809 B | 8809 | |
| LS161N | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8707 CA | 8707 | |
| LS32 | Texas Instruments | SN74HC32N | 74-32 Series | DIP-14 | 736 J | 8736 |
