Release Info
| Catalog ID | NBF-R7 (09) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 20, 1990 |
| Publisher | Nichibutsu |
| Developer | Nichibutsu |
| Players | 1 |
| Peripherals | Famicom Controller |

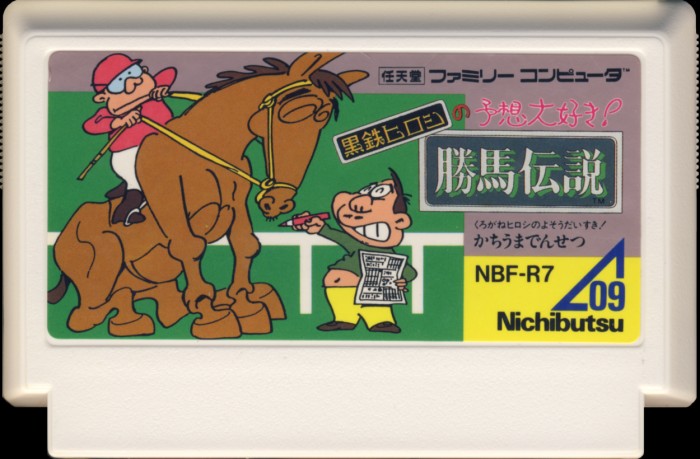

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | NBF-R7 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

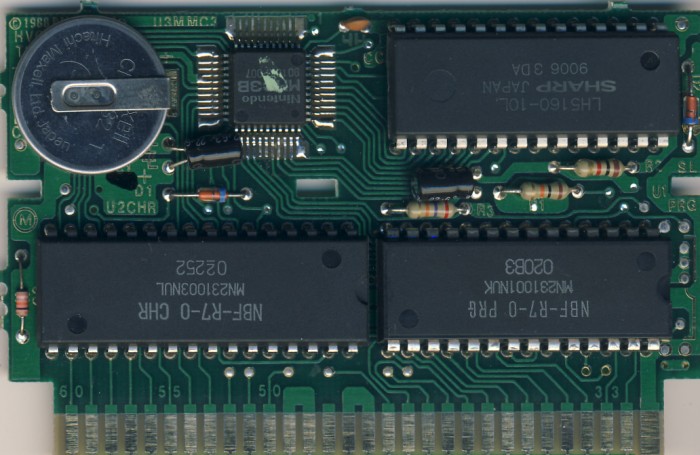

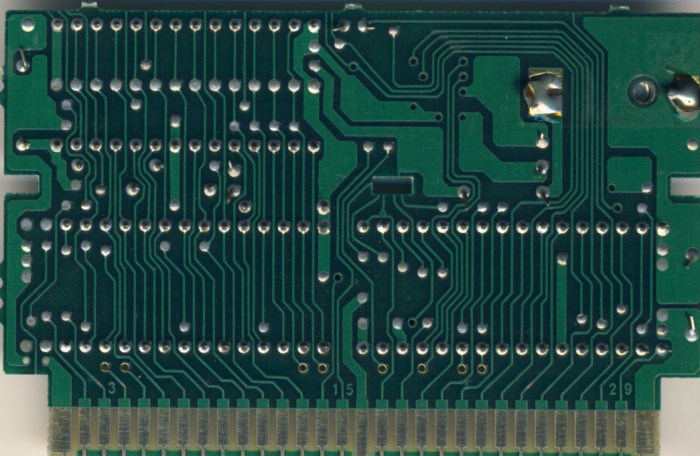

PCB Properties
| Name | HVC-TKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9016 |
| Est First Run | April 1990 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NBF-R7-0 PRG | 128 KB | A2C79EC5 | 1 |
| CHR0 | NBF-R7-0 CHR | 128 KB | DEB519D9 | 1 |
| N/A | ROMs Combined | 256 KB | 8F011713 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NUK | Mask ROM 128 KB | DIP-28 | 020 B3 | 9006 | |
| U2 CHR | Panasonic | MN231003 NUL | Mask ROM 128 KB | DIP-32 | 0 52 | 9008 | |
| U3 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9016 KP007 | 9016 | |
| U4 W-RAM | Sharp | LH5160-10L | SRAM 8 KB | DIP-28 | 9006 3 DA | 9006 |
