Release Info
| Catalog ID | NBF-7F (11) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 7, 1992 |
| Publisher | Nichibutsu |
| Developer | Make Software |
| Players | 1 |
| Peripherals | Famicom Controller |

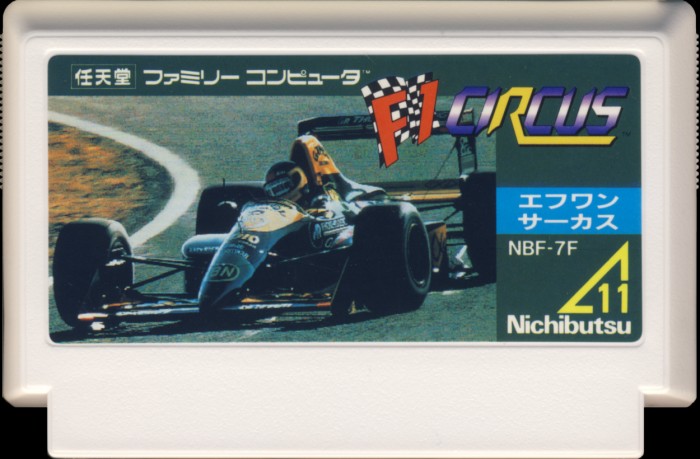

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | NBF-7F |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

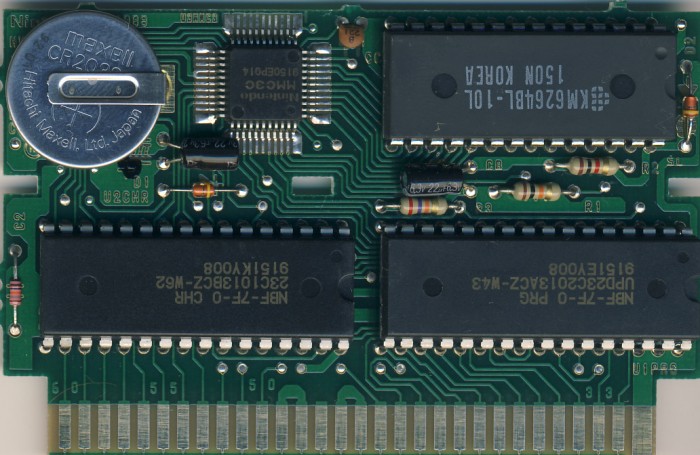

PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9151 |
| Est First Run | December 1991 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NBF-7F-0 PRG | 256 KB | 245870ED | 1 |
| CHR0 | NBF-7F-0 CHR | 128 KB | CEC97CAB | 1 |
| N/A | ROMs Combined | 384 KB | ECBF33CE | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W43 | Mask ROM 256 KB | DIP-32 | 9151 EY008 | 9151 | |
| U2 CHR | NEC | 23C1013BCZ W62 | Mask ROM 128 KB | DIP-32 | 9151 KY008 | 9151 | |
| U3 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9150 EP014 | 9150 | |
| U4 W-RAM | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 150 N | 9150 |
