Release Info
| Catalog ID | JF-33 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 22, 1991 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

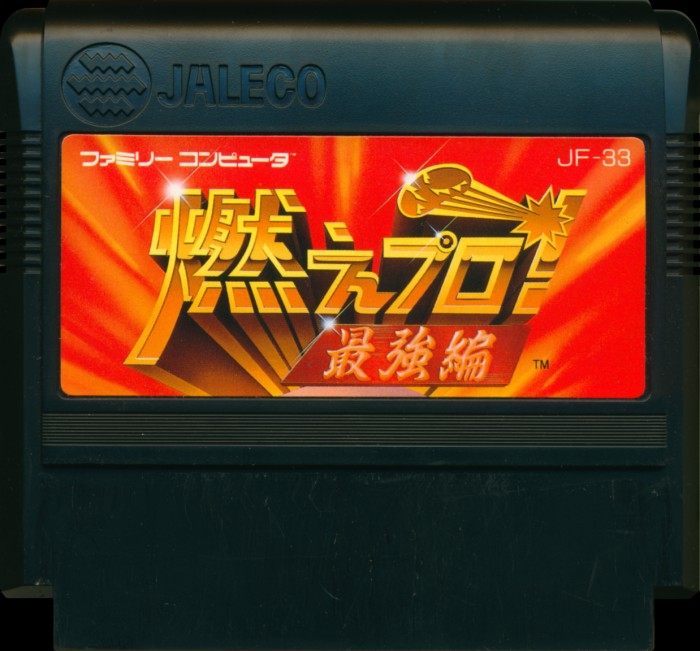

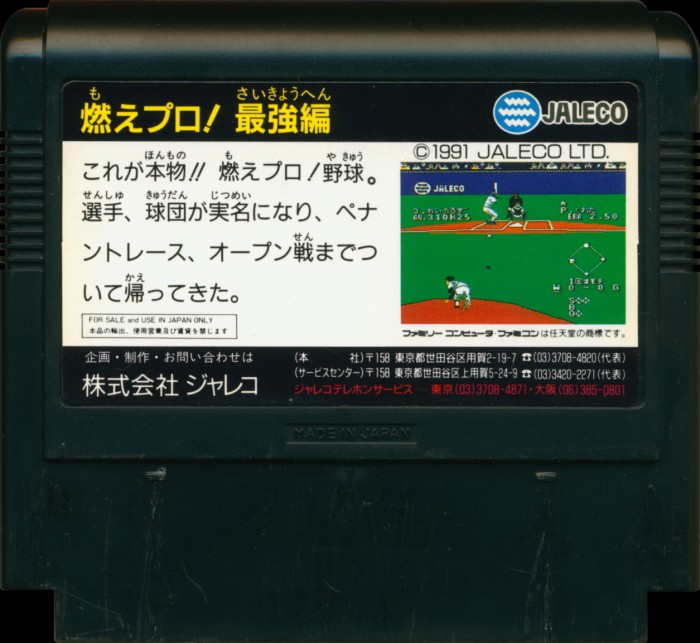

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | Made in Japan |
| Front Label ID | JF-33 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

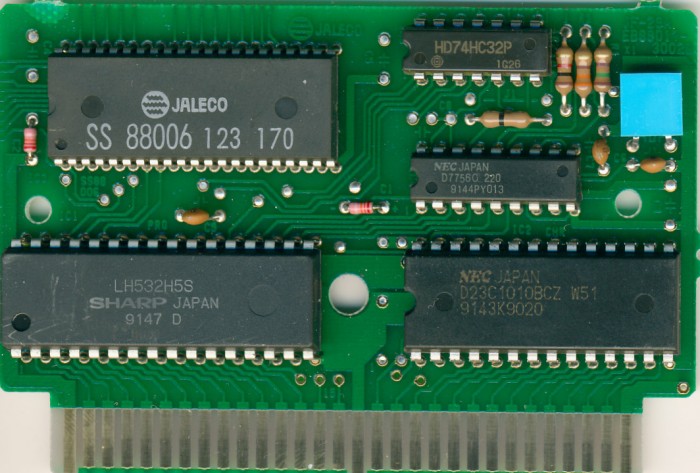

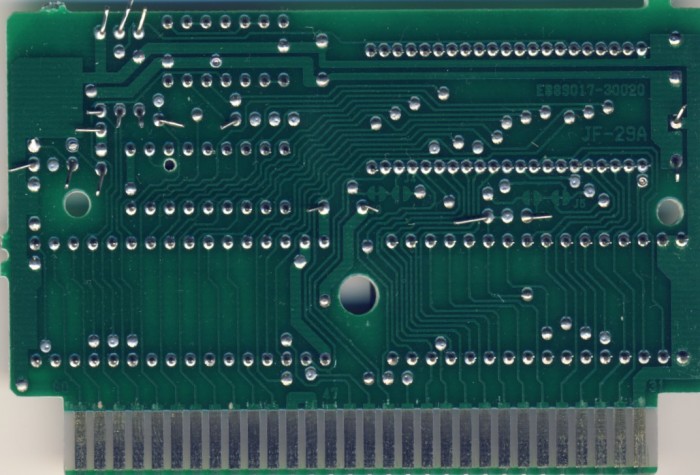

PCB Properties
| Name | JF-29A |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 9147 |
| Est First Run | November 1991 |
| PCB Class | JALECO-JF-29 |
| iNES Mapper | 18 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx32, D7756C, SS88006 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | 035CC54B | 1 |
| CHR0 | Not Present | 128 KB | 221F85CF | 1 |
| N/A | ROMs Combined | 384 KB | 3F8D6889 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | Sharp | LH532H 5S | Mask ROM 256 KB | DIP-32 | 9147 D | 9147 | |
| IC2 CHR | NEC | D23C1010BCZ W51 | Mask ROM 128 KB | DIP-28 | 9143 K9020 | 9143 | |
| IC3 SS88006 | Rohm | SS 88006 | Jaleco SS88006 | DIP-42 | 123 170 | 9123 | |
| IC4 | NEC | D7756C 220 | ADPCM Speech Chip 256 kb | DIP-18 | 9144 PY013 | 9144 | |
| IC5 | Hitachi | HD74HC32P | 74-32 Series | DIP-14 | 1G2 6 | 9128 |
