Release Info
| Catalog ID | JF-24 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 24, 1989 |
| Publisher | Jaleco |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

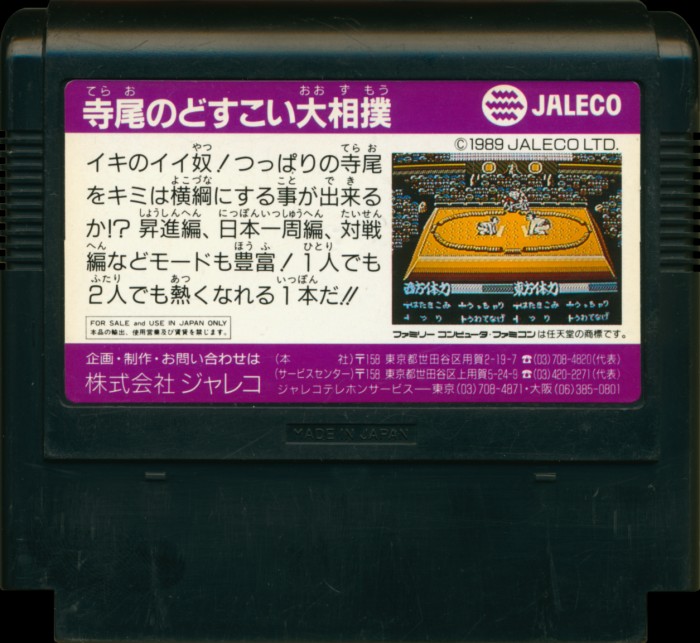

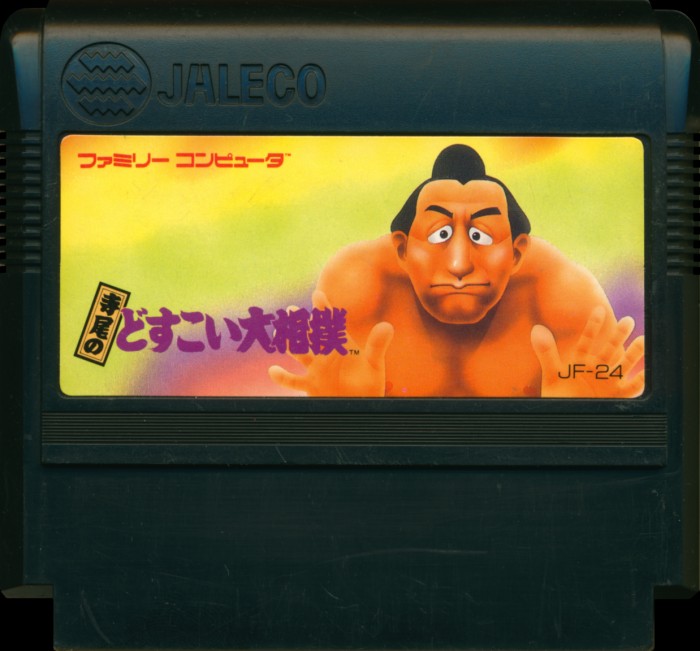

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | Made in Japan |
| Front Label ID | JF-24 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

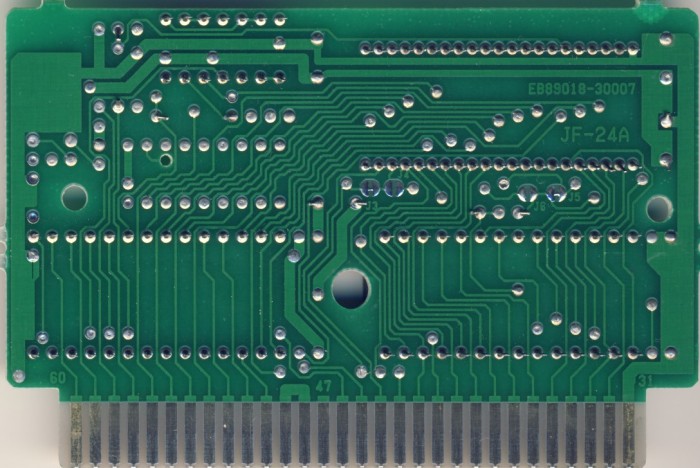

PCB Properties
| Name | JF-24A |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8943 |
| Est First Run | October 1989 |
| PCB Class | JALECO-JF-24 |
| iNES Mapper | 18 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | D7755C, SS88006 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 3C361B36 | 1 |
| CHR0 | Not Present | 128 KB | A7C1010E | 1 |
| N/A | ROMs Combined | 256 KB | 6479E76A | 1 |

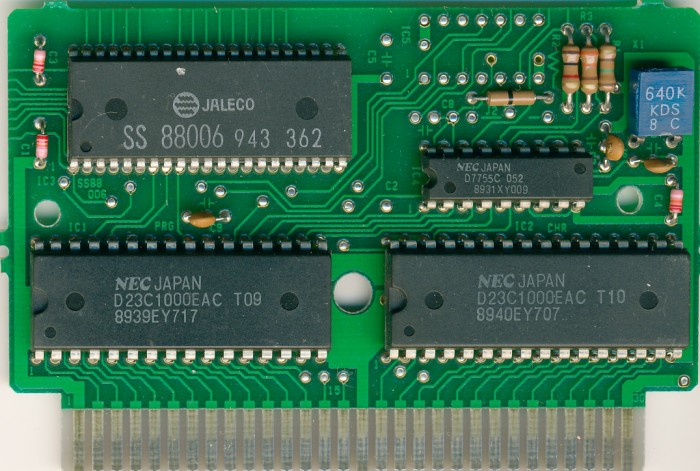

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | NEC | D23C1000EAC T09 | Mask ROM 128 KB | DIP-32 | 8939 EY717 | 8939 | |
| IC2 CHR | NEC | D23C1000EAC T10 | Mask ROM 128 KB | DIP-32 | 8940 EY707 | 8940 | |
| IC3 SS88006 | Rohm | SS 88006 | Jaleco SS88006 | DIP-42 | 943 362 | 8943 | |
| IC4 | NEC | D7755C 052 | ADPCM Speech Chip 96 kb | DIP-18 | 8931 XY009 | 8931 |
