Release Info
| Catalog ID | VRE-R3 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 13, 1990 |
| Publisher | Varie |
| Developer | Varie |
| Players | 4 |
| Peripherals | Famicom Controller |

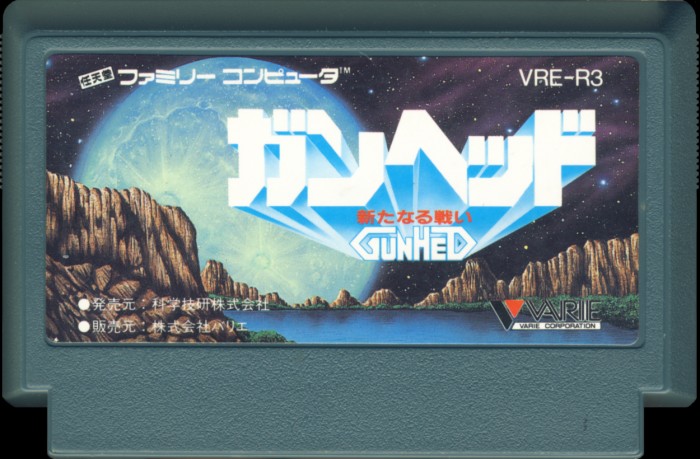

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Slate Grey |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | VRE-R3 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

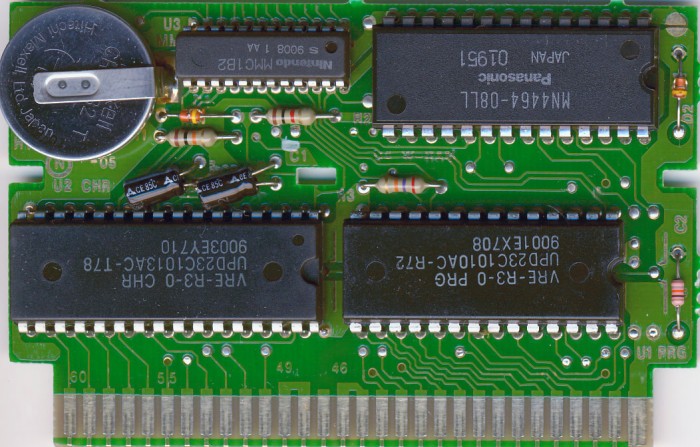

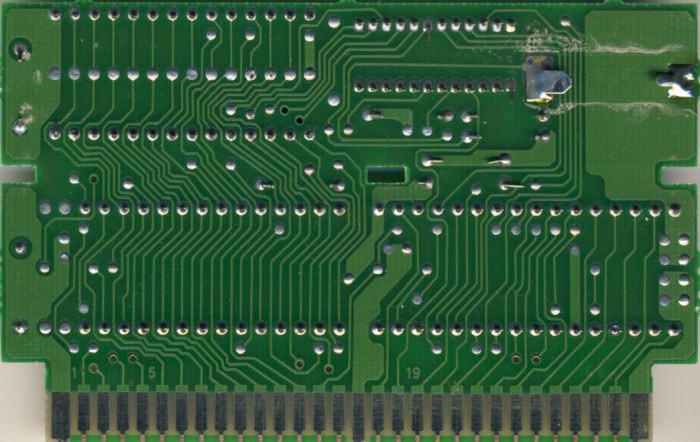

PCB Properties
| Name | HVC-SKROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9008 |
| Est First Run | February 1990 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | VRE-R3-0 PRG | 128 KB | E362ECDC | 1 |
| CHR0 | VRE-R3-0 CHR | 128 KB | 95FABCC8 | 1 |
| N/A | ROMs Combined | 256 KB | E8BAA782 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC R72 | Mask ROM 128 KB | DIP-28 | 9001 EX708 | 9001 | |
| U2 CHR | NEC | UPD23C1013AC T78 | Mask ROM 128 KB | DIP-32 | 9003 EY710 | 9003 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9008 1 AA | 9008 | |
| U4 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 0 51 | 9005 |
