Release Info
| Catalog ID | BAN-OZ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 20, 1992 |
| Publisher | Bandai |
| Developer | |
| Players | 1 |
| Peripherals | Famicom Controller |

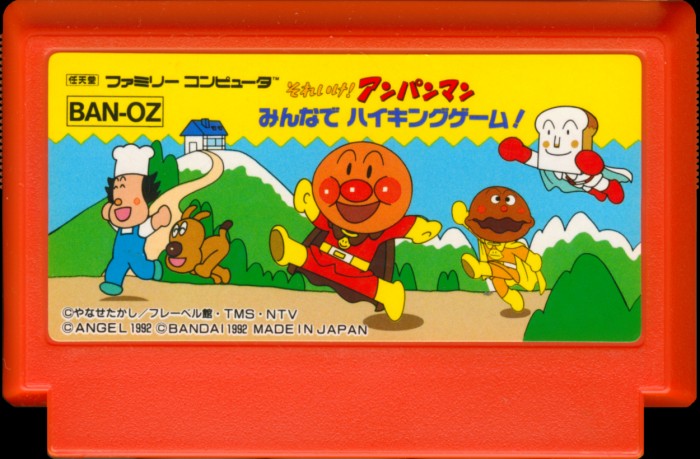

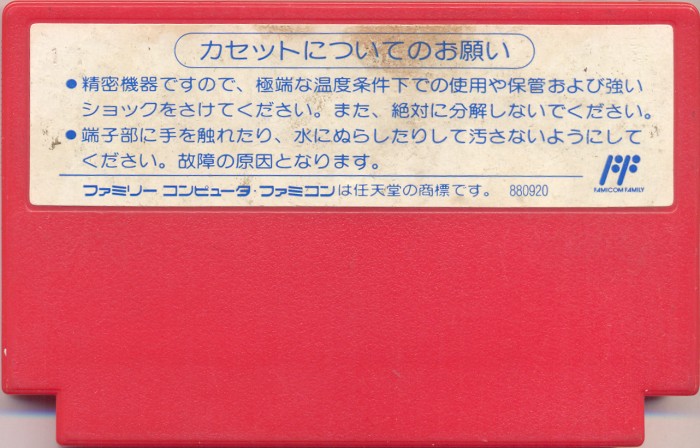

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | BAN-OZ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

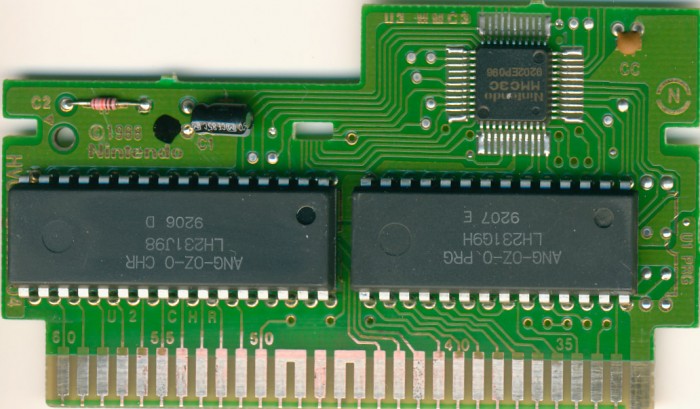

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9207 |
| Est First Run | February 1992 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ANG-OZ-0 PRG | 128 KB | 0BF31A3D | 1 |
| CHR0 | ANG-OZ-0 CHR | 128 KB | 8B404560 | 1 |
| N/A | ROMs Combined | 256 KB | FE99BBED | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 9H | Mask ROM 128 KB | DIP-28 | 9207 E | 9207 | |
| U2 CHR | Sharp | LH231J 98 | Mask ROM 128 KB | DIP-32 | 9206 D | 9206 | |
| U3 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9202 EP096 | 9202 |
