Release Info
| Catalog ID | TFC-PB-5900-31 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 20, 1990 |
| Publisher | Taito |
| Developer | Natsume |
| Players | 1 |
| Peripherals | Famicom Controller |

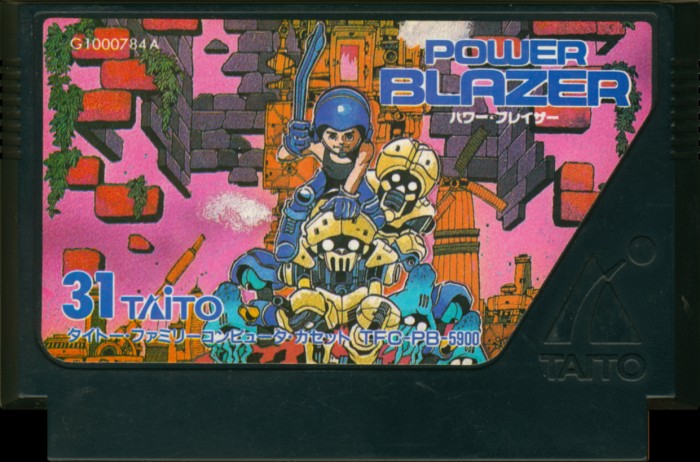

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Beveled Label / Logo 3 |
| Embossed Text | |
| Front Label ID | TFC-PB-5900 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

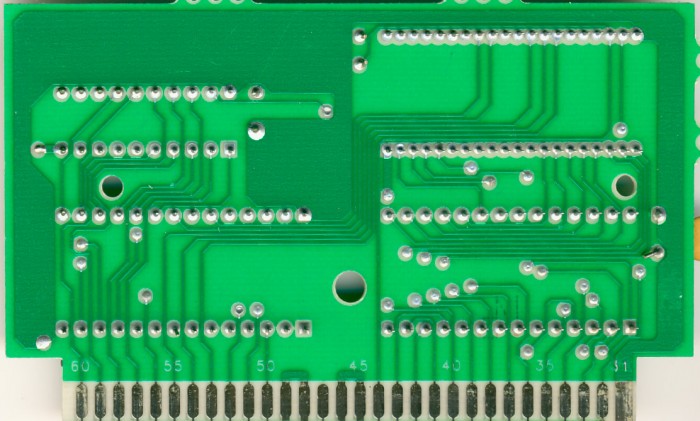

PCB Properties
| Name | J9100205A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 9007 |
| Est First Run | February 1990 |
| PCB Class | TAITO-TC0190FMC |
| iNES Mapper | 33 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx245, TC0190FMC |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | C37-01 | 128 KB | 07EE6D8F | 1 |
| CHR0 | C37-02 | 128 KB | 8C7B2E41 | 1 |
| N/A | ROMs Combined | 256 KB | AEB7FCE9 | 1 |

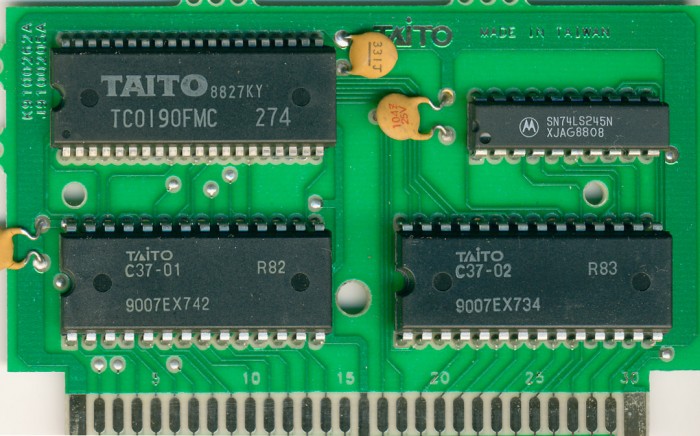

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 9007 EX742 | 9007 | ||
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 9007 EX734 | 9007 | ||
| NEC | TC0190FMC 274 | Taito TC0190FMC | DIP-40 | 8827 KY | 8827 | ||
| Motorola | SN74LS245N | 74-245 Series | DIP-20 | 8808 XJAG | 8808 |
