Release Info
| Catalog ID | TFC-GO-5900-26 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 25, 1989 |
| Publisher | Taito |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | Famicom Controller |

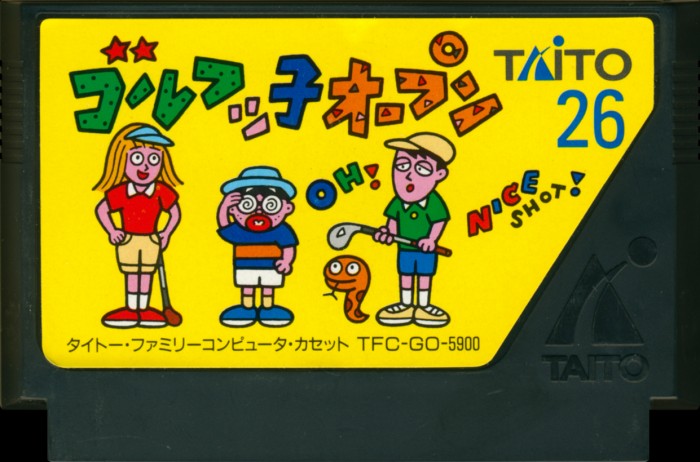

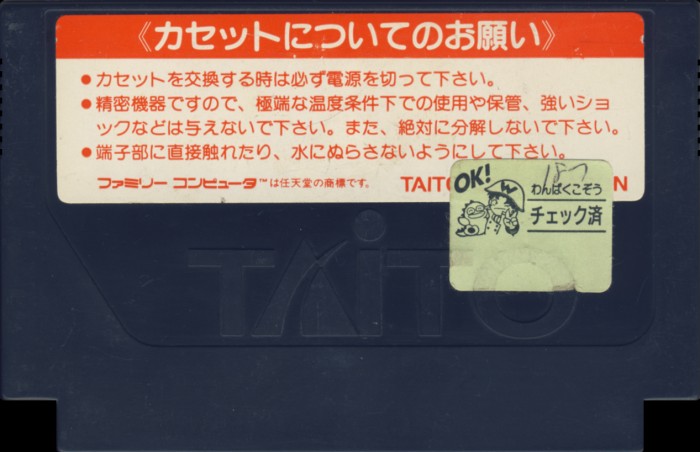

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Beveled Label / Logo 3 |
| Embossed Text | |
| Front Label ID | TFC-GO-5900 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

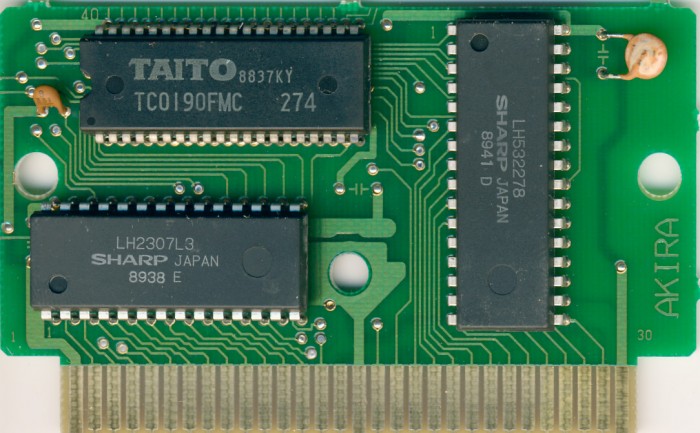

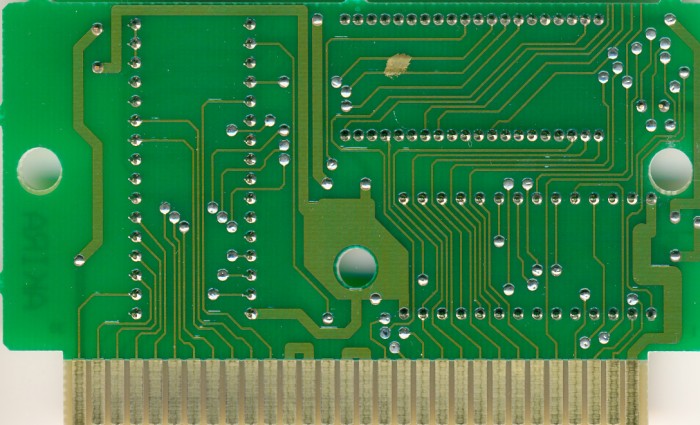

PCB Properties
| Name | AKIRA |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8941 - 8941 (2) |
| Est First Run | October 1989 |
| PCB Class | TAITO-TC0190FMC |
| iNES Mapper | 33 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | TC0190FMC |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 837C1342 | 2 |
| CHR0 | Not Present | 256 KB | DC467CF8 | 2 |
| N/A | ROMs Combined | 384 KB | BACA10A9 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2307 L3 | Mask ROM 128 KB | DIP-28 | 8938 E | 8938 | ||
| Sharp | LH5322 78 | Mask ROM 256 KB | DIP-32 | 8941 D | 8941 | ||
| NEC | TC0190FMC 274 | Taito TC0190FMC | DIP-40 | 8837 KY | 8837 |
