Release Info
| Catalog ID | NES-C6-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1990 |
| Publisher | Data East |
| Developer | Beam Software |
| Players | 2 |
| Peripherals | NES Controller |

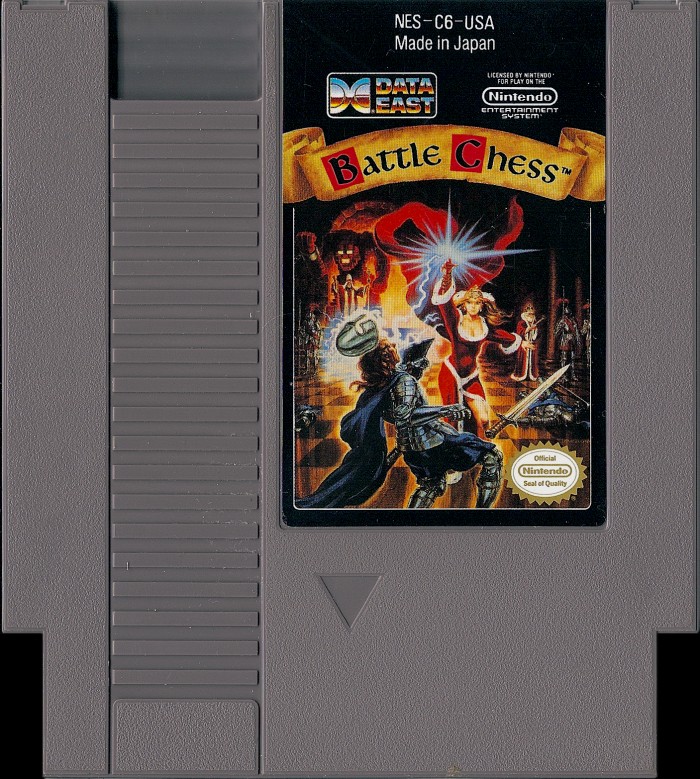

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-C6-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 07 |
PCB Properties
| Name | NES-SGROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9021 - 9027 (2) |
| Est First Run | May 1990 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-C6-0 PRG | 256 KB | 2C2DDFB4 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 97 | Mask ROM 256 KB | DIP-32 | 9027 D | 9027 | |
| U2 CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9010 M5 | 9010 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9017 7 TA | 9017 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9024 5 CA | 9024 |
