Release Info
| Catalog ID | HVC-ZL |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 19, 1994 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Famicom Controller |

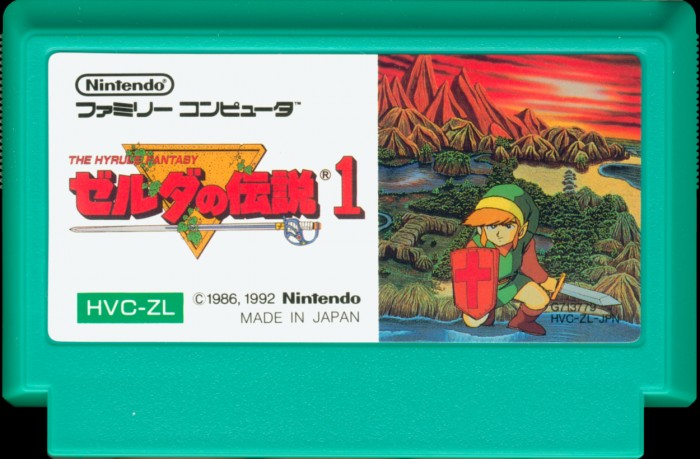

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Sea Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-ZL |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |
PCB Properties
| Name | HVC-SNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9403 |
| Est First Run | January 1994 |
| PCB Class | HVC-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1B3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-ZL-0 PRG | 128 KB | 7AE0BF3C | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 1G | Mask ROM 128 KB | DIP-28 | 9403 E | 9403 | |
| U2 CHR | GoldStar | GM76C88AL-15 | SRAM 8 KB | DIP-28 | 9350 | 9350 | |
| U3 MMC1 | NEC | MMC1B3 | Nintendo MMC1 | DIP-24 | 9225 B3001 | 9225 | |
| U4 W-RAM | GoldStar | GM76C88AL-15 | SRAM 8 KB | DIP-28 | 9347 | 9347 |
