Release Info
| Catalog ID |
PHF-XP (R62V10002) |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
October 21, 1990 |
| Publisher |
Pony Canyon |
| Developer |
Brøderbund |
| Players |
1 |
| Peripherals |
Famicom Controller |

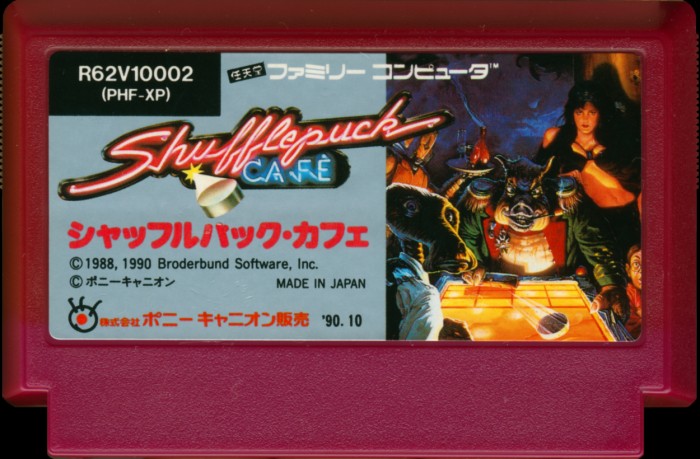

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Magenta |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
PHF-XP |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-UNROM-10 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9034 |
| Est First Run |
August 1990 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
PHF-XP-0 PRG |
128 KB |
917D9262 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Ricoh |
RP231027D
5484
|
Mask ROM
128 KB
|
DIP-28 |
0HM
42
|
9033 |
|
| U2 CHR RAM |
LSI Logic |
LH5160F-10TL
|
SRAM
8 KB
|
DIP-28 |
034
D
|
9034 |
|
| U3 HC161 |
Phillips |
PC74HC161P
|
74-161 Series
|
DIP-16 |
9027
Hnn
|
9027 |
664850T |
| U4 HC32 |
Phillips |
PC74HC32P
|
74-32 Series
|
DIP-14 |
9022
Hnn
|
9022 |
668570T |
Additional Images
PCB Images
