Release Info
| Catalog ID |
PNF-QS (R59V5925) |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
December 19, 1989 |
| Publisher |
Pony Canyon |
| Developer |
Natsume |
| Players |
2 |
| Peripherals |
Famicom Controller |
Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Sea Green |
| Form Factor |
Small |
| Embossed Text |
|

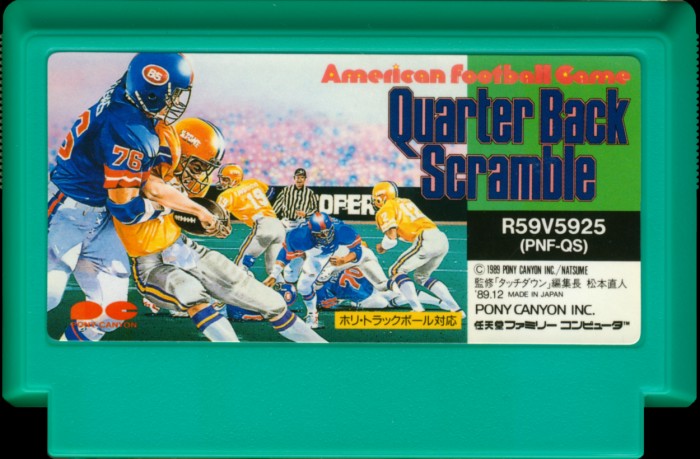

| Front Label ID |
PNF-QS |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |

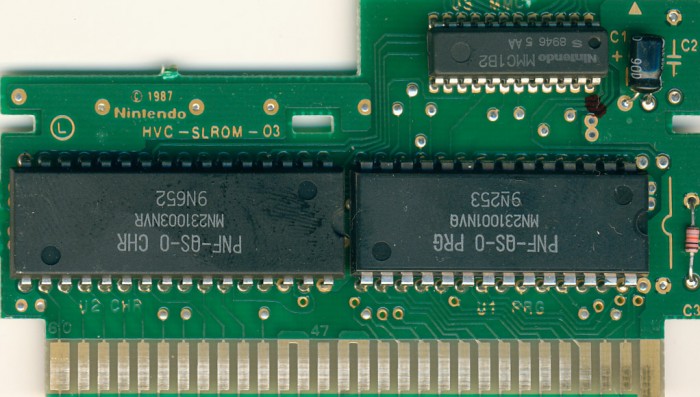

PCB Properties
| Name |
HVC-SLROM-03 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8947 |
| Est First Run |
November 1989 |
| PCB Class |
HVC-SLROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
0 KB |
| CIC Type |
None |
| Hardware |
MMC1B2 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
PNF-QS-0 PRG |
128 KB |
45111A7F |
1 |
| CHR0 |
PNF-QS-0 CHR |
128 KB |
72E809DE |
1 |
| N/A |
ROMs Combined |
256 KB |
3FEA656A |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Panasonic |
MN231001
NVQ
|
Mask ROM
128 KB
|
DIP-28 |
9
53
|
8947 |
|
| U2 CHR |
Panasonic |
MN231003
NVR
|
Mask ROM
128 KB
|
DIP-32 |
9N6
52
|
8946 |
|
| U3 MMC1 |
Sharp |
MMC1B2
|
Nintendo MMC1
|
DIP-24 |
8946
5 AA
|
8946 |
|
