Release Info
| Catalog ID | DTF-WK (43) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 24, 1992 |
| Publisher | Taito |
| Developer | EIM |
| Players | 1 |
| Peripherals | Famicom Controller |

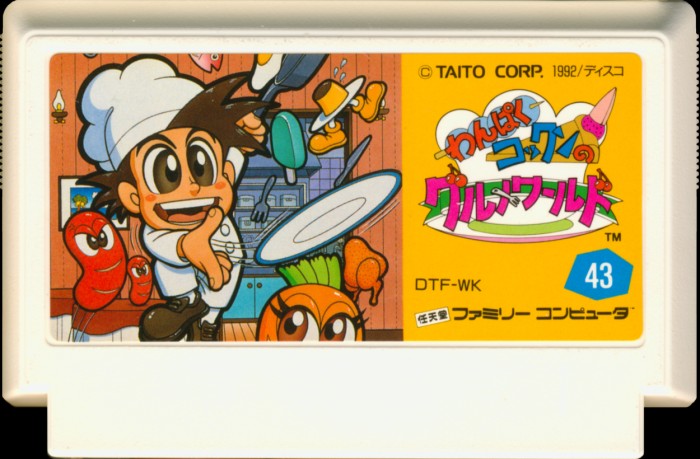

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | DTF-WK |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

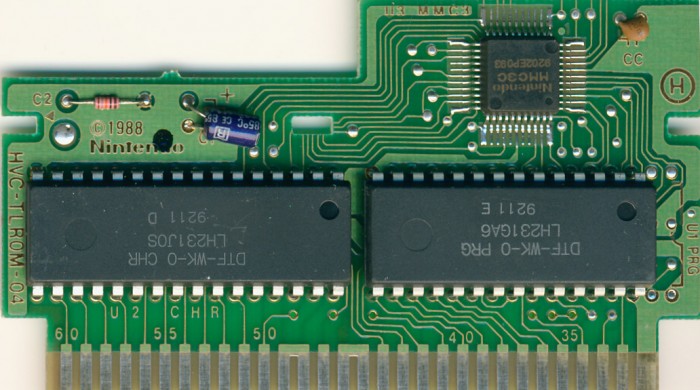

PCB Properties
| Name | HVC-TLROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9211 |
| Est First Run | March 1992 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DTF-WK-0 PRG | 128 KB | ADE11141 | 1 |
| CHR0 | DTF-WK-0 CHR | 128 KB | 78B27EF1 | 1 |
| N/A | ROMs Combined | 256 KB | D568563F | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G A6 | Mask ROM 128 KB | DIP-28 | 9211 E | 9211 | |
| U2 CHR | Sharp | LH231J 0S | Mask ROM 128 KB | DIP-32 | 9211 D | 9211 | |
| U3 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9202 EP093 | 9202 |
