Release Info
| Catalog ID | PNF-QQ (R78V5936) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 21, 1991 |
| Publisher | Pony Canyon |
| Developer | Strategic Simulations |
| Players | 1 |
| Peripherals | Famicom Controller |

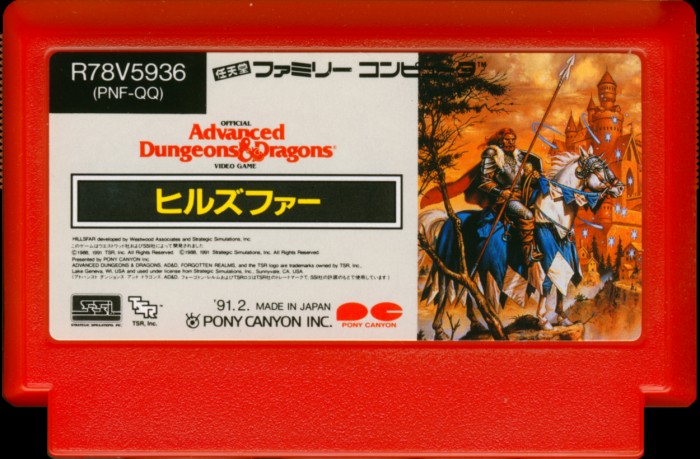

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | PNF-QQ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-SNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9104 |
| Est First Run | January 1991 |
| PCB Class | HVC-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PNF-QQ-0 PRG | 256 KB | 2C33161D | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP232048E 0059 | Mask ROM 256 KB | DIP-32 | 1AB 70 | 9101 | |
| U2 CHR | Toshiba | TC5565APL-15L | SRAM 8 KB | DIP-28 | 9032 HCK | 9032 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9104 1 AA | 9104 | |
| U4 W-RAM | Toshiba | TC5565APL-15L | SRAM 8 KB | DIP-28 | 9032 HCK | 9032 |
