Release Info
| Catalog ID | SQF-HI |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 7, 1987 |
| Publisher | Square |
| Developer | Square |
| Players | 1 |
| Peripherals | 3-D Glasses,Famicom Controller |

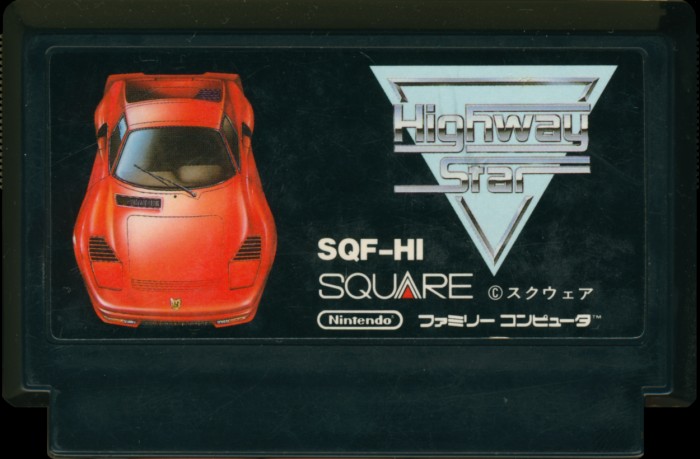

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SQF-HI |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-SGROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8729 |
| Est First Run | July 1987 |
| PCB Class | HVC-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SQF-HI-0 PRG | 128 KB | 02589598 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8729 KX | 8729 | ||
| NEC | 64S20 | SRAM 8 KB | DIP-28 | 8724 BU | 8724 | ||
| Sharp | MMC1 | Nintendo MMC1 | DIP-24 | 8726 A | 8726 |
