Release Info
| Catalog ID | TKS-G8 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 25, 1989 |
| Publisher | Tonkin House |
| Developer | Aisystem Tokyo |
| Players | 4 |
| Peripherals | Famicom Controller |

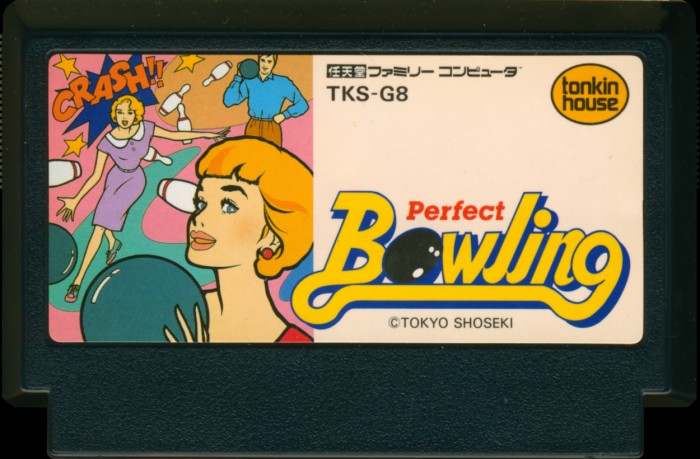

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TKS-G8 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

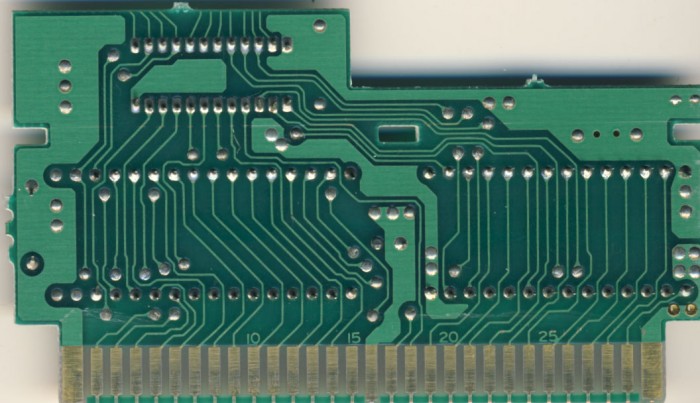

PCB Properties
| Name | HVC-SFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8926 |
| Est First Run | June 1989 |
| PCB Class | HVC-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TKS-G8-0 PRG | 128 KB | 10327E0E | 1 |
| CHR0 | TKS-G8-0 CHR | 32 KB | 5B9698E2 | 1 |
| N/A | ROMs Combined | 160 KB | 9ECB9DCD | 1 |

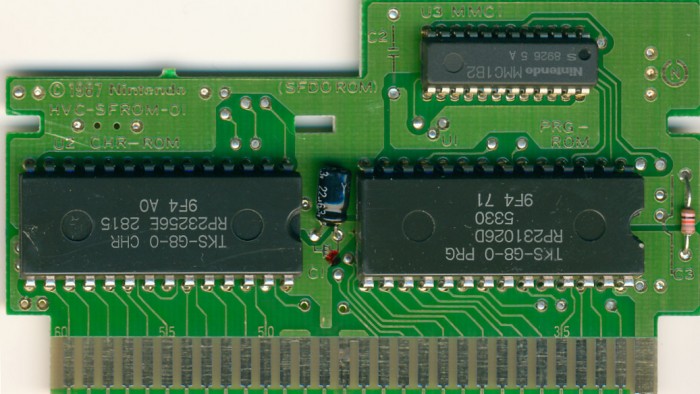

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Ricoh | RP231026D 5330 | Mask ROM 128 KB | DIP-28 | 9F4 71 | 8926 | |
| U2 CHR-ROM | Ricoh | RP23256E 2815 | Mask ROM 32 KB | DIP-28 | 9F4 A0 | 8926 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8926 5 A | 8926 |
