Release Info
| Catalog ID | HUM-E9 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 31, 1991 |
| Publisher | Human Entertainment |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Famicom Controller |

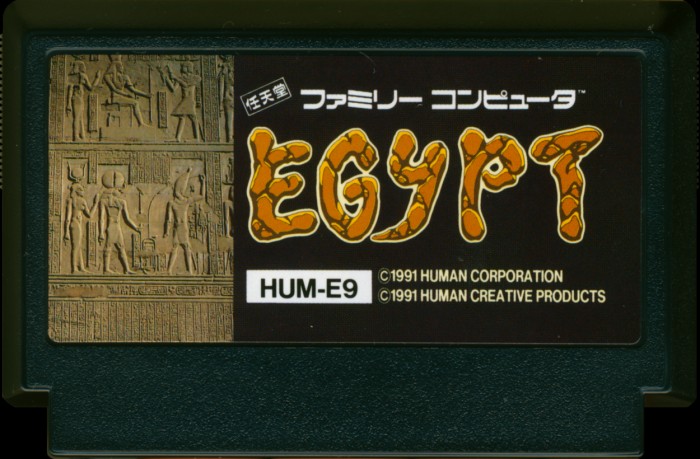

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HUM-E9 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

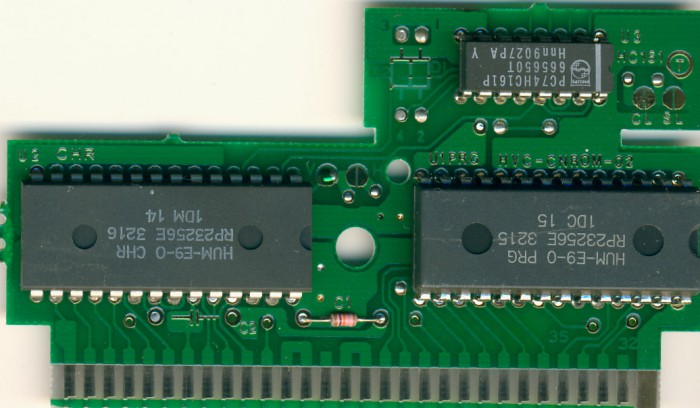

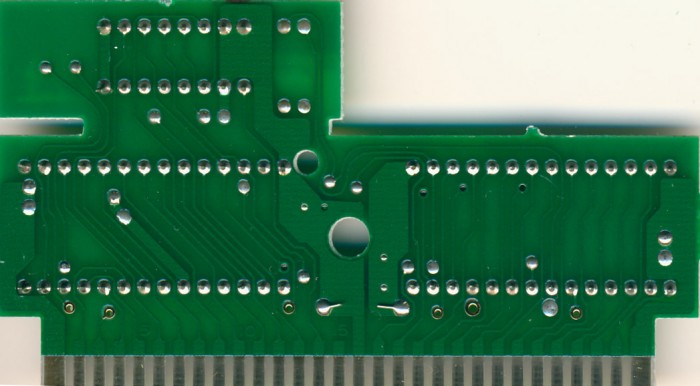

PCB Properties
| Name | HVC-CNROM-2 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9116 |
| Est First Run | April 1991 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HUM-E9-0 PRG | 32 KB | 5D8992C6 | 1 |
| CHR0 | HUM-E9-0 CHR | 32 KB | C0A4DF00 | 1 |
| N/A | ROMs Combined | 64 KB | E1C03EB6 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 3215 | Mask ROM 32 KB | DIP-28 | 1DC 15 | 9114 | |
| U2 CHR | Ricoh | RP23256E 3216 | Mask ROM 32 KB | DIP-28 | 1DM 14 | 9116 | |
| U3 HC161 | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 9027 Hnn | 9027 | 665650T |
