Release Info
| Catalog ID | NES-XV-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1988 |
| Publisher | Bandai |
| Developer | Namco |
| Players | 2 |
| Peripherals | NES Controller |

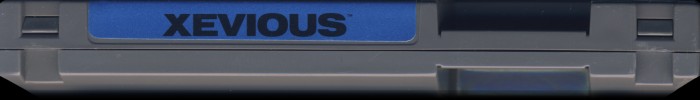

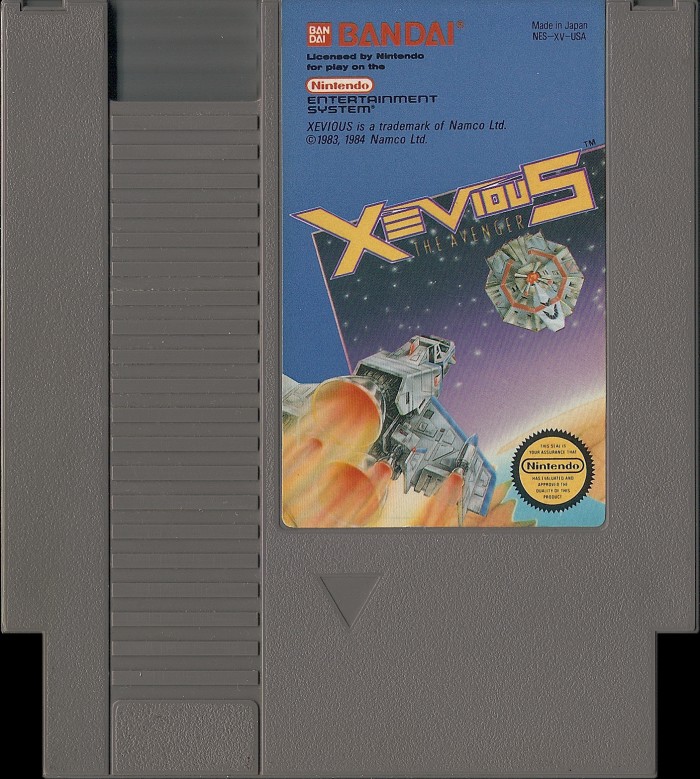

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-XV-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 19 |

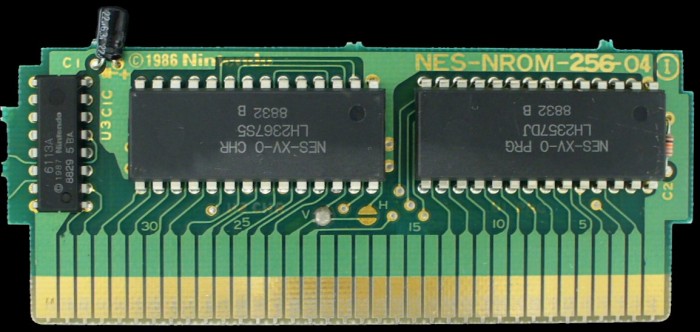

PCB Properties
| Name | NES-NROM-256-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8832 - 8832 (2) |
| Est First Run | August 1988 |
| PCB Class | NES-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-XV-0 PRG | 32 KB | 18D5AF7A | 3 |
| CHR0 | NES-XV-0 CHR | 8 KB | 668B4EE6 | 12 |
| N/A | ROMs Combined | 40 KB | DFD70E27 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2357 DJ | Mask ROM 32 KB | DIP-28 | 8832 B | 8832 | |
| U2 CHR | Sharp | LH2367 S5 | Mask ROM 8 KB | DIP-28 | 8832 B | 8832 | |
| U3 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8829 5 BA | 8829 |
