Release Info
| Catalog ID | USE-HG |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 23, 1989 |
| Publisher | Use |
| Developer | Use |
| Players | 1 |
| Peripherals | Famicom Controller |

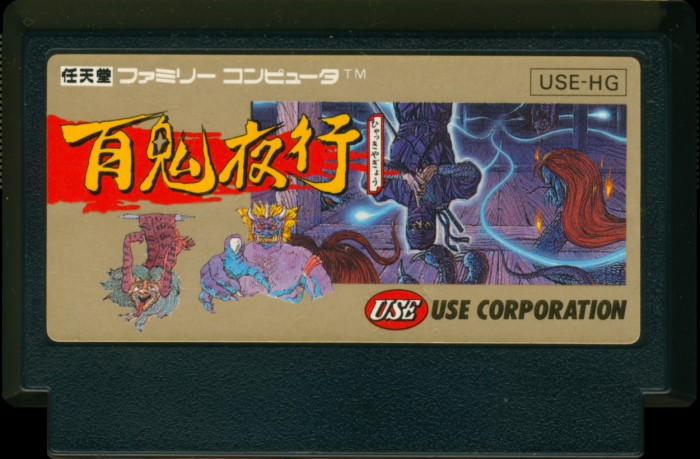

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | USE-HG |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

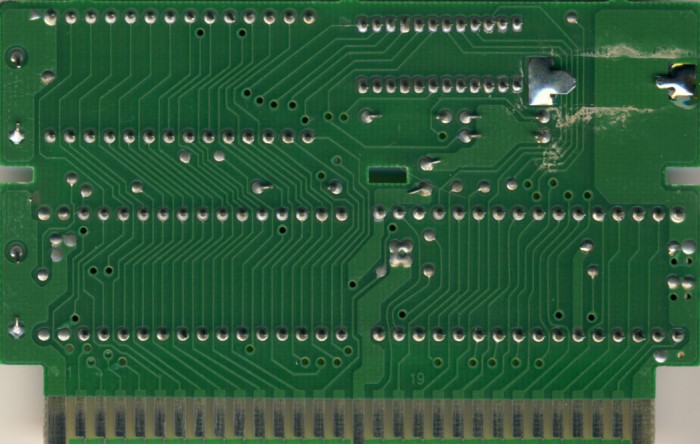

PCB Properties
| Name | HVC-SKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8904 |
| Est First Run | January 1989 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | USE-HG-0 PRG | 128 KB | 1E2F89C8 | 1 |
| CHR0 | USE-HG-0 CHR | 128 KB | 02DA5432 | 1 |
| N/A | ROMs Combined | 256 KB | DC1E07D2 | 1 |

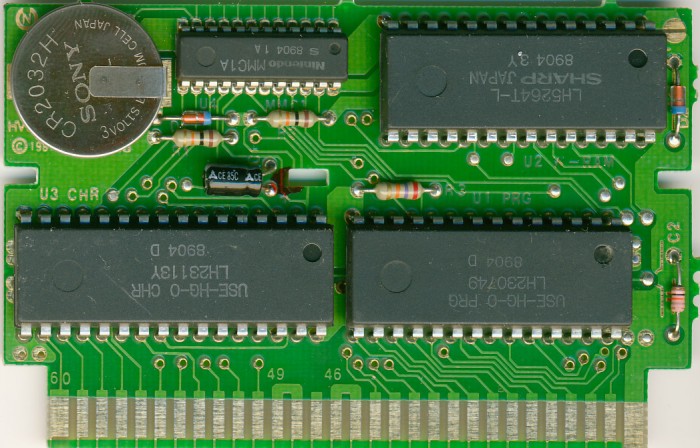

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2307 49 | Mask ROM 128 KB | DIP-28 | 8904 D | 8904 | |
| U2 W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8904 3 Y | 8904 | |
| U3 CHR | Sharp | LH2311 3Y | Mask ROM 128 KB | DIP-32 | 8904 D | 8904 | |
| U4 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8904 1 A | 8904 |
