Release Info
| Catalog ID | PNF-QW (R68V5932) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 21, 1990 |
| Publisher | Pony Canyon |
| Developer | Atelier Double |
| Players | 1 |
| Peripherals | Famicom Controller |

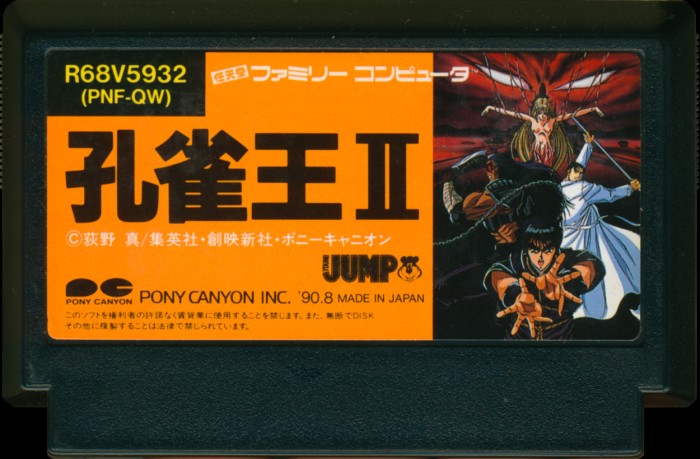

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | PNF-QW |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

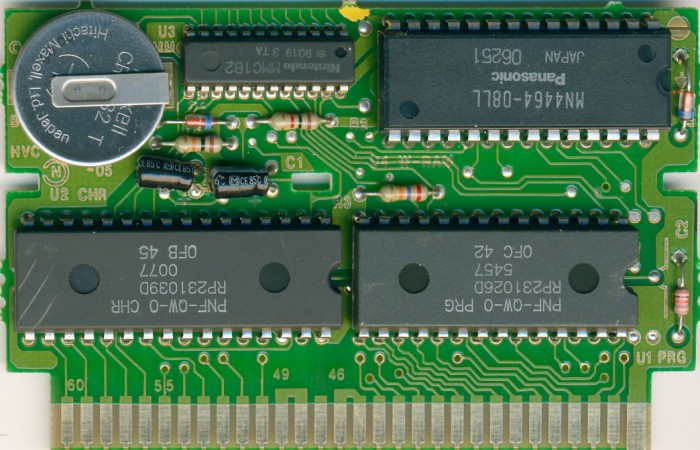

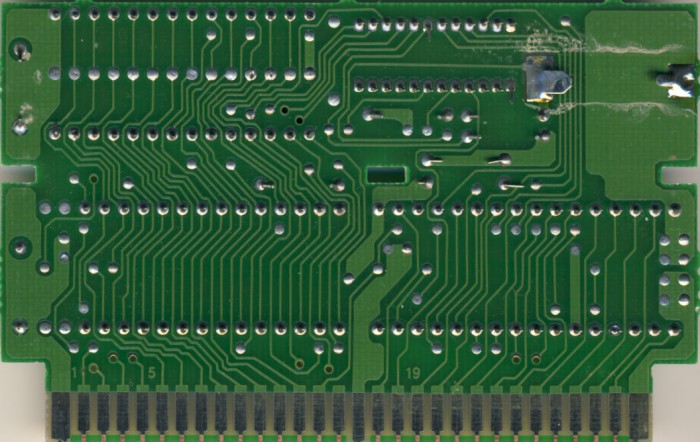

PCB Properties
| Name | HVC-SKROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9024 |
| Est First Run | June 1990 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PNF-QW-0 PRG | 128 KB | A5781280 | 1 |
| CHR0 | PNF-QW-0 CHR | 128 KB | 4F98A36A | 1 |
| N/A | ROMs Combined | 256 KB | A4DCDF28 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5457 | Mask ROM 128 KB | DIP-28 | 0FC 42 | 9023 | |
| U2 CHR | Ricoh | RP231039D 0077 | Mask ROM 128 KB | DIP-32 | 0FB 45 | 9023 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9019 3 TA | 9019 | |
| U4 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 062 51 | 9024 |
