Release Info
| Catalog ID | HVC-EN |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 22, 1983 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Famicom Controller |

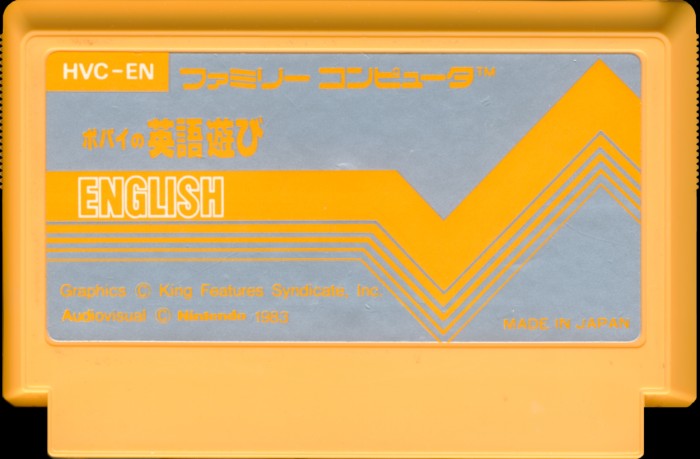

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Peach |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-EN |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

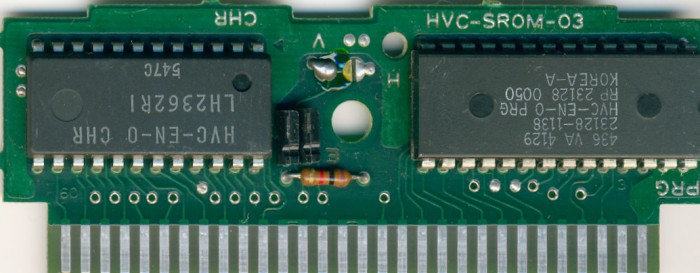

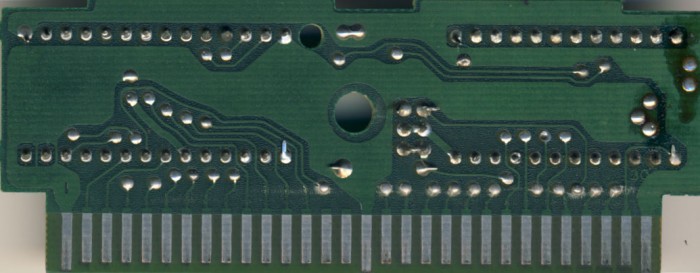

PCB Properties
| Name | HVC-SROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8436 |
| Est First Run | September 1984 |
| PCB Class | HVC-SROM |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-EN-0 PRG | 16 KB | 2DBFA36A | 1 |
| CHR0 | HVC-EN-0 CHR | 8 KB | FCCC0F36 | 1 |
| N/A | ROMs Combined | 24 KB | 27738241 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | VTI | 23128 1138 | Mask ROM 16 KB | DIP-28 | 436 VA 4129 | 8436 | RP23128 0050 |
| CHR | Sharp | LH2362 R1 | Mask ROM 8 KB | DIP-24 | 47C 5 | 8429 |
