Release Info
| Catalog ID | VRE-R2 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | October 14, 1989 |
| Publisher | Varie |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Famicom Controller |

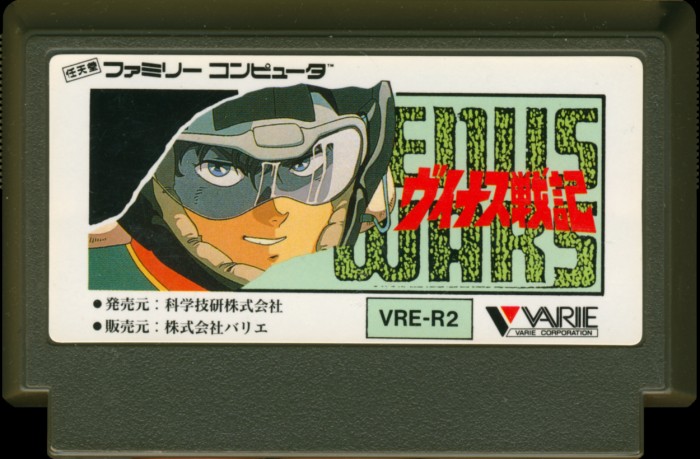

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Olive Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | VRE-R2 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

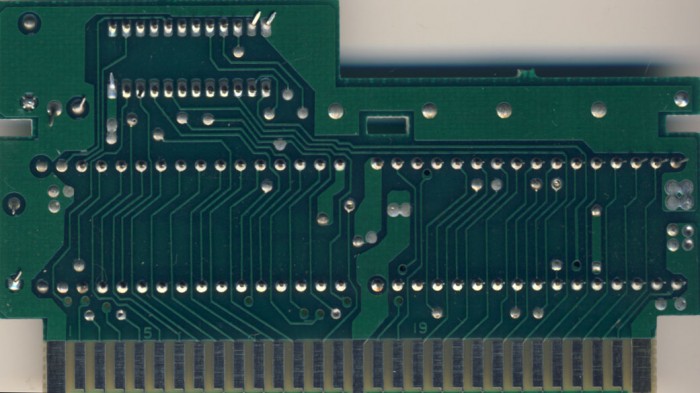

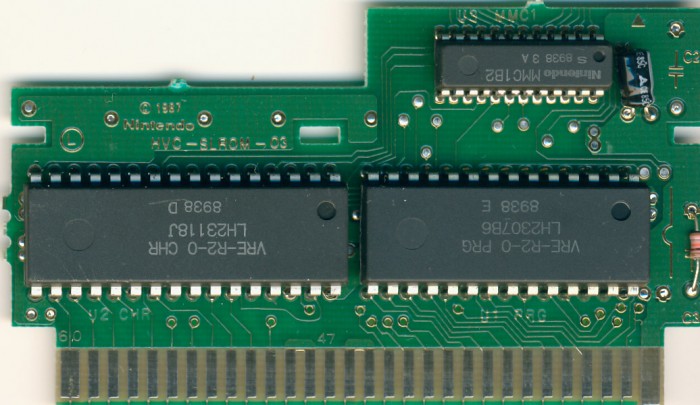

PCB Properties
| Name | HVC-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8938 |
| Est First Run | September 1989 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | VRE-R2-0 PRG | 128 KB | C96C6F04 | 1 |
| CHR0 | VRE-R2-0 CHR | 128 KB | B53C4032 | 1 |
| N/A | ROMs Combined | 256 KB | 1D8BF724 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2307 B6 | Mask ROM 128 KB | DIP-28 | 8938 E | 8938 | |
| U2 CHR | Sharp | LH2311 8J | Mask ROM 128 KB | DIP-32 | 8938 D | 8938 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8938 3 A | 8938 |
