Release Info
| Catalog ID | TJC-WD |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 8, 1988 |
| Publisher | Technos |
| Developer | Technos |
| Players | 2 |
| Peripherals | Famicom Controller |

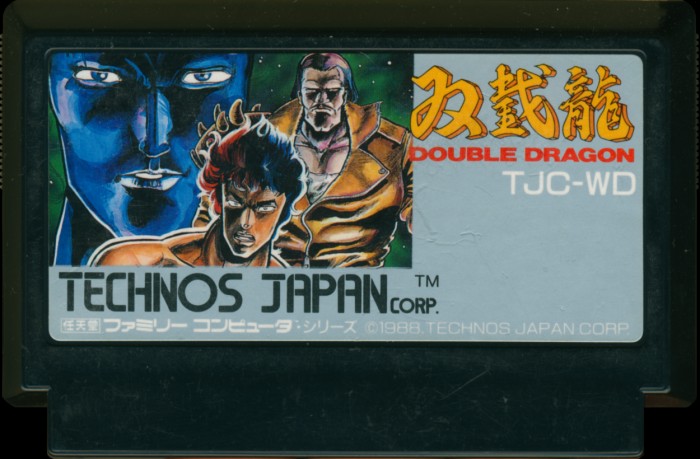

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TJC-WD |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

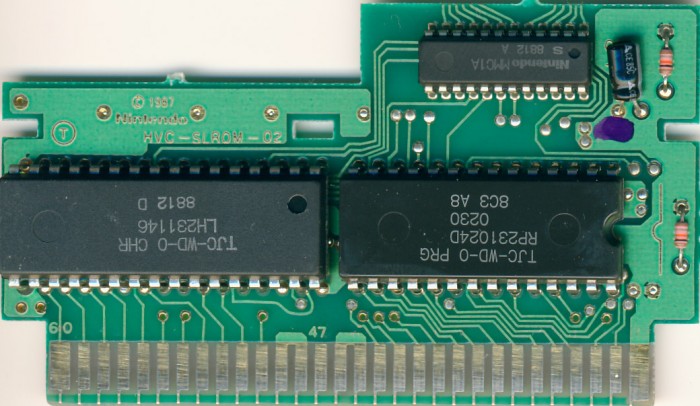

PCB Properties
| Name | HVC-SLROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8812 |
| Est First Run | March 1988 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TJC-WD-0 PRG | 128 KB | 87BAD69B | 1 |
| CHR0 | TJC-WD-0 CHR | 128 KB | 17CF68A0 | 1 |
| N/A | ROMs Combined | 256 KB | 6DCE4B23 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Ricoh | RP231024D 0230 | Mask ROM 128 KB | DIP-28 | 8C3 A8 | 8812 | ||
| Sharp | LH2311 46 | Mask ROM 128 KB | DIP-32 | 8812 D | 8812 | ||
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8812 A | 8812 |
