Release Info
| Catalog ID |
SUN-FZ-5300 |
| Region |
Japan (NTSC) |
| Class |
Licensed » 3rd-Party |
| Release Date |
July 20, 1987 |
| Publisher |
Sunsoft |
| Developer |
Sega |
| Players |
1 |
| Peripherals |
Famicom Controller |

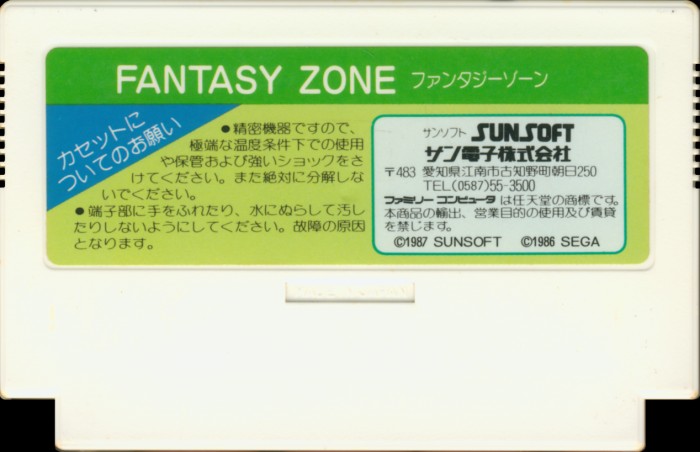

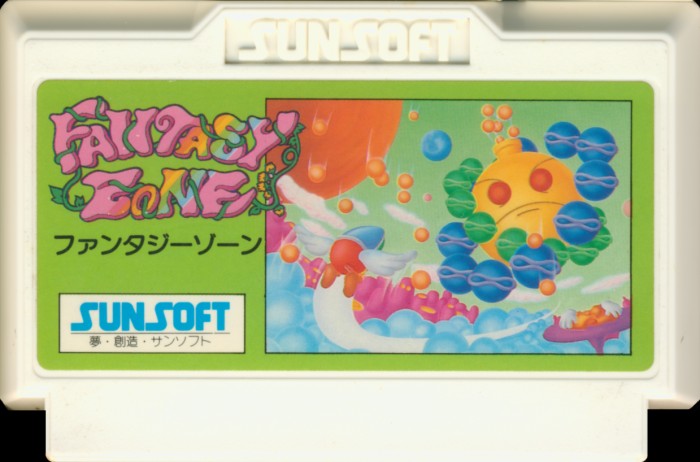

Cart Properties
| Cart Producer |
Sunsoft |
| Color |
White |
| Form Factor |
Small |
| Embossed Text |
Made in Japan |
| Front Label ID |
|
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
SUNSOFT-4 |
| PCB Producer |
Sunsoft |
| Manufacturer |
Not Specified |
| Mfg Range |
8728 |
| Est First Run |
July 1987 |
| PCB Class |
SUNSOFT-1 |
| iNES Mapper |
93 |
| Mirroring |
Horizontal |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
Sunsoft-1 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
SUNSOFT-8 |
128 KB |
10119E6B |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| IC1 |
Mitsubishi |
SUNSOFT-1
|
Sunsoft-1
|
DIP-16 |
641
100
|
8641 |
|
| IC2 |
Sharp |
LH2310
|
Mask ROM
128 KB
|
DIP-28 |
8728
E
|
8728 |
|
| IC3 |
Sharp |
LH5264D4
|
SRAM
8 KB
|
DIP-28 |
8727
5 Y
|
8727 |
|
Additional Images
PCB Images
