Release Info
| Catalog ID | SUN-DBT-6500 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 20, 1991 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | Famicom Controller |

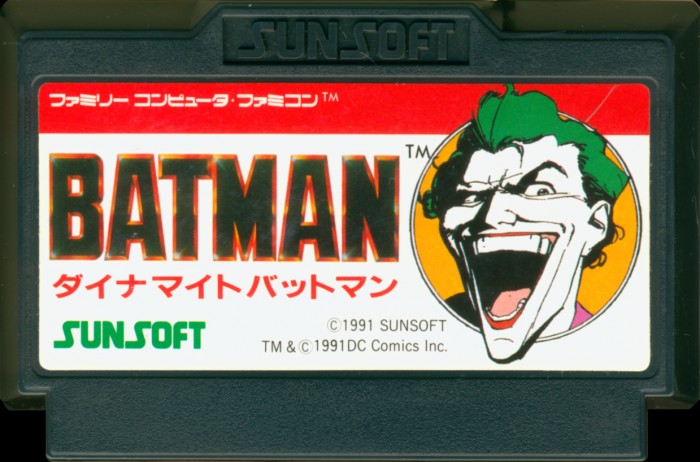

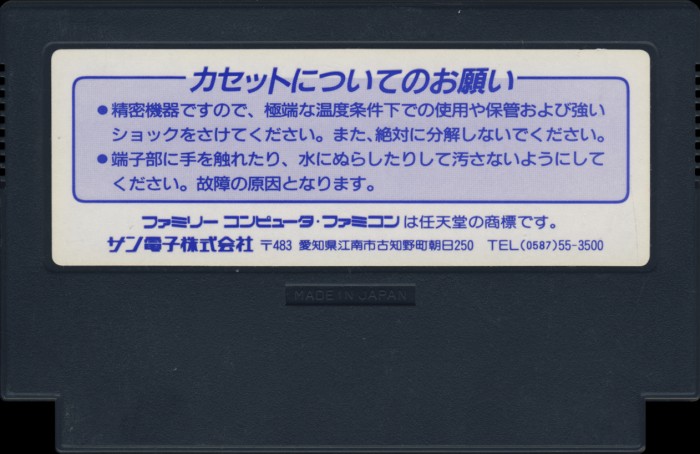

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

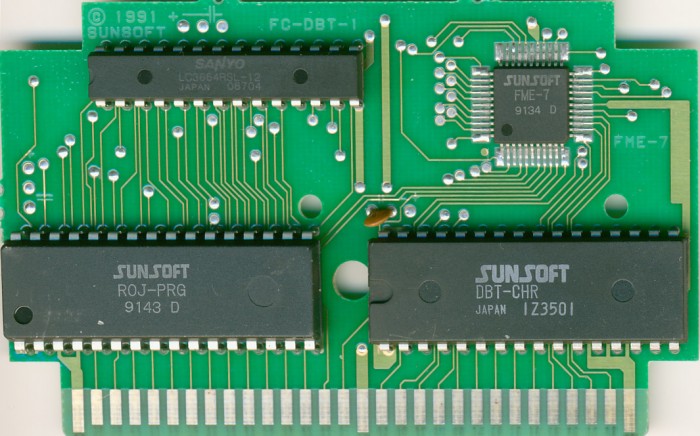

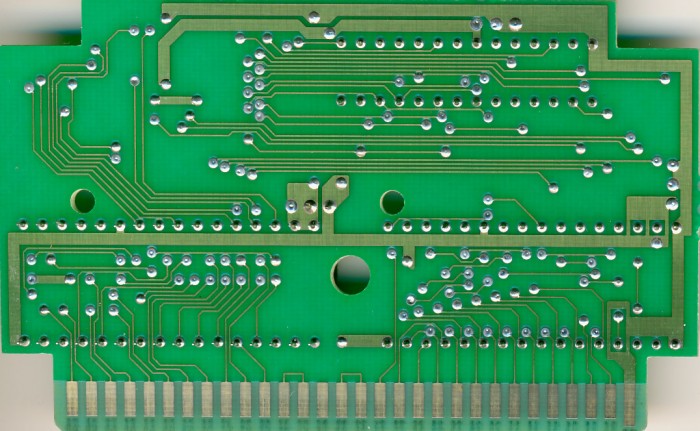

PCB Properties
| Name | FC-DBT-1 |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 9149 |
| Est First Run | December 1991 |
| PCB Class | SUNSOFT-FME-7 |
| iNES Mapper | 69 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | FME-7 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ROJ-PRG | 128 KB | AD28AEF6 | 2 |
| CHR0 | DBT-CHR | 256 KB | 1B752E6B | 1 |
| N/A | ROMs Combined | 384 KB | 0FF6A3B5 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2311 | Mask ROM 128 KB | DIP-32 | 9143 D | 9143 | ||
| OKI | M382000 | Mask ROM 256 KB | DIP-32 | 1Z 3501 | 9149 | ||
| FME-7 | Sharp | FME-7 | Sunsoft FME-7 | TQFP-44 | 9134 D | 9134 | |
| Sanyo | LC3664RSL-12 | SRAM 8 KB | SDIP-28 | 08 704 | 9031 |
