Release Info
| Catalog ID | SUN-MKII-5500 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | August 11, 1988 |
| Publisher | Sunsoft |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

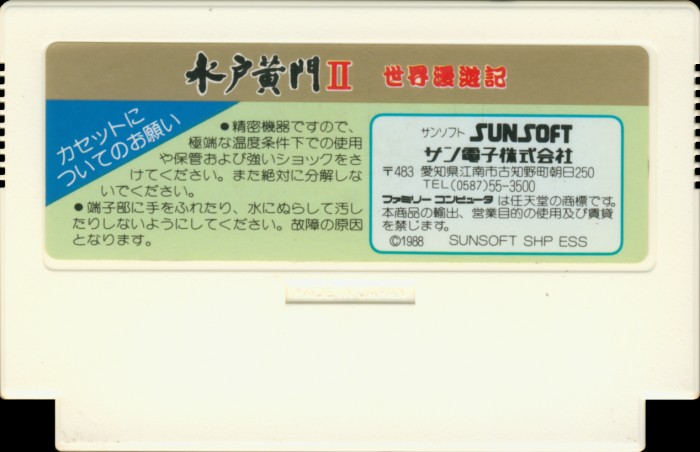

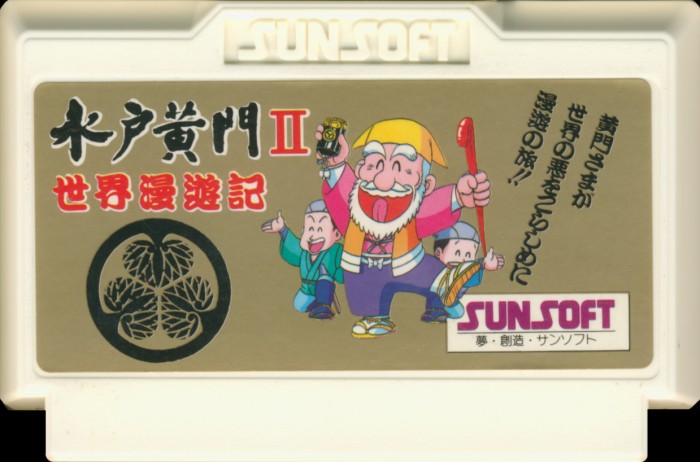

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

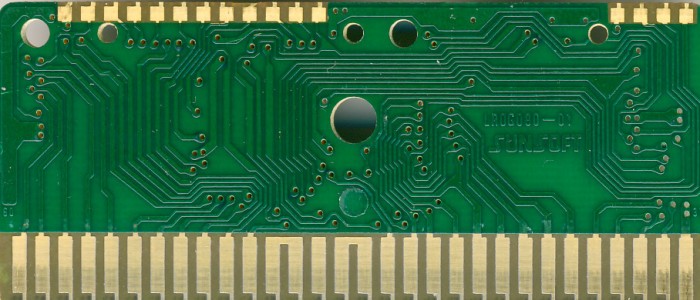

PCB Properties
| Name | LROG080-01 |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Sharp |
| Mfg Range | 8830 |
| Est First Run | July 1988 |
| PCB Class | SUNSOFT-3 |
| iNES Mapper | 67 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | Sunsoft-3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | 371E771C | 1 |
| CHR0 | Not Present | 128 KB | B5B0B704 | 1 |
| N/A | ROMs Combined | 256 KB | CA24A1A2 | 1 |

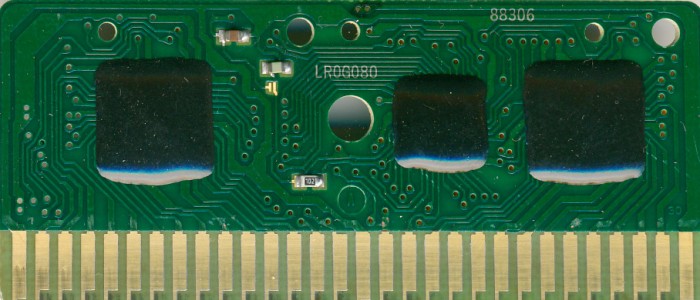

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Sharp | LROG080 | Chip-on-Board PCB | PCB | 8830 6 | 8830 | |
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EPSS-3 | Sunsoft-3 | EPOXY |
