Release Info
| Catalog ID | SUN-MHA-6200 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 29, 1989 |
| Publisher | Sunsoft |
| Developer | Bothtec (Quest) |
| Players | 1 |
| Peripherals | Famicom Controller |

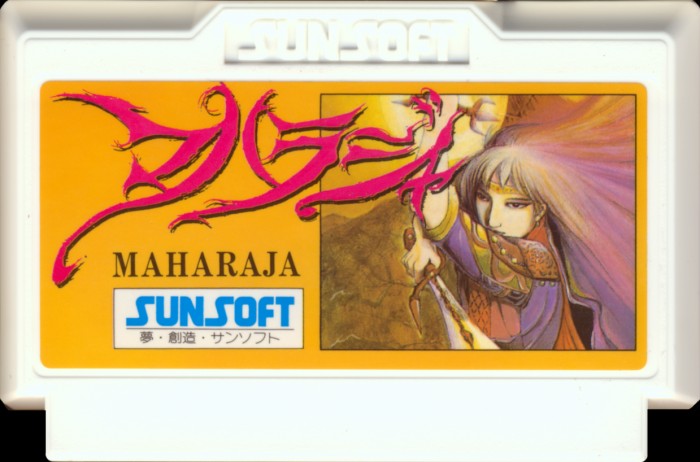

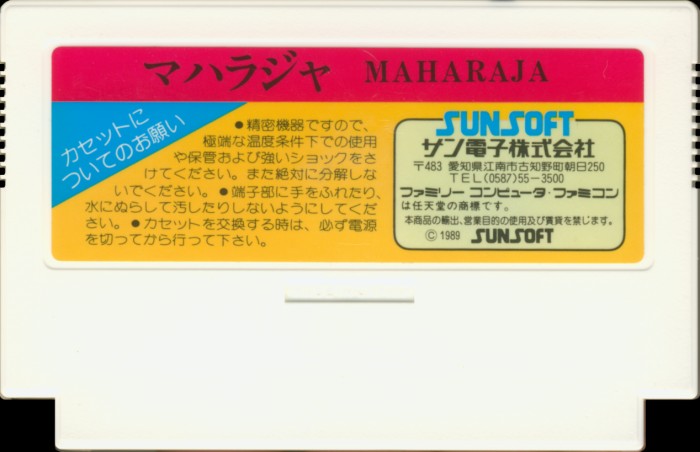

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

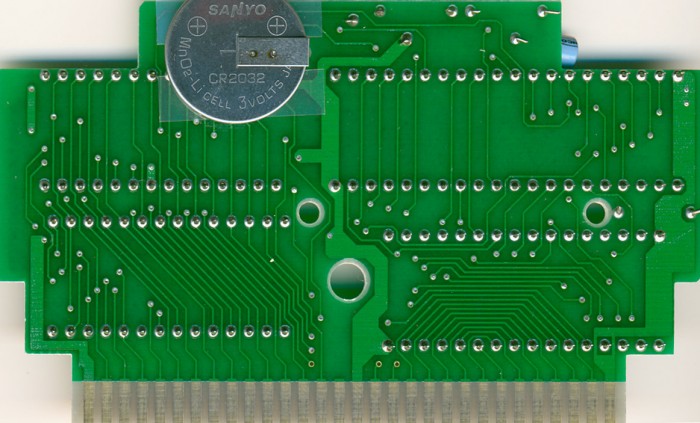

PCB Properties
| Name | UNK-SUNSOFT-MHA |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 8938 |
| Est First Run | September 1989 |
| PCB Class | SUNSOFT-4 |
| iNES Mapper | 68 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | Sunsoft-4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | MHA-PRG | 128 KB | FDE79681 | 1 |
| CHR0 | MHA-CHR | 128 KB | FE011FB9 | 1 |
| N/A | ROMs Combined | 256 KB | 98CCC9AB | 1 |

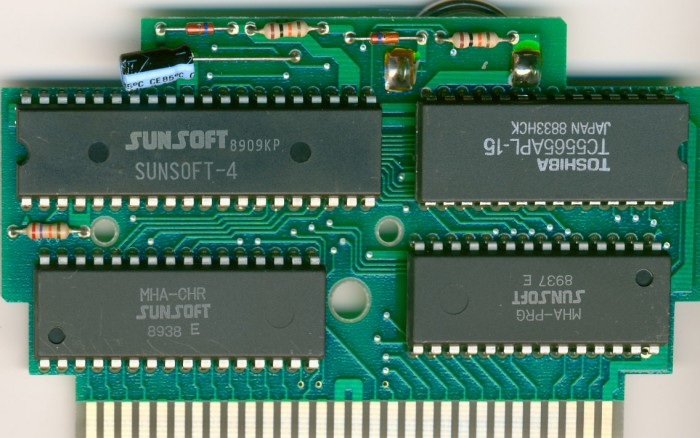

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8937 E | 8937 | ||
| Sharp | LH2311 | Mask ROM 128 KB | DIP-32 | 8938 E | 8938 | ||
| NEC | SUNSOFT-4 | Sunsoft-4 | DIP-40 | 8909 KP | 8909 | ||
| Toshiba | TC5565APL-15 | SRAM 8 KB | DIP-28 | 8833 HCK | 8833 |
