Release Info
| Catalog ID | IF-25 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 20, 1991 |
| Publisher | Irem |
| Developer | Japan System House |
| Players | 1 |
| Peripherals | Famicom Controller |

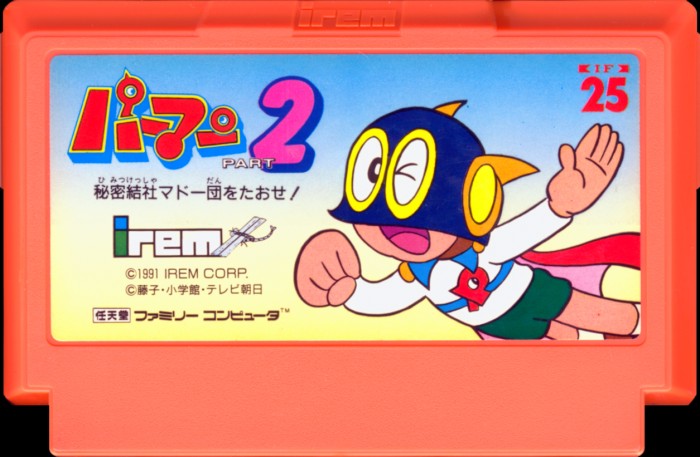

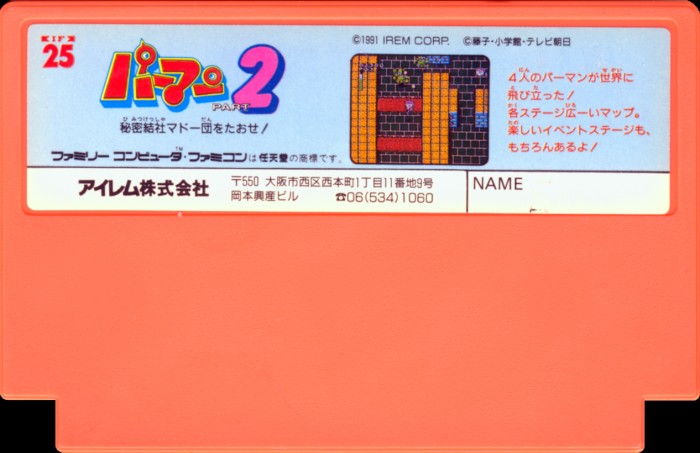

Cart Properties
| Cart Producer | Irem |
|---|---|
| Color | Orange |
| Form Factor | New Style |
| Embossed Text | |
| Front Label ID | IF-25 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

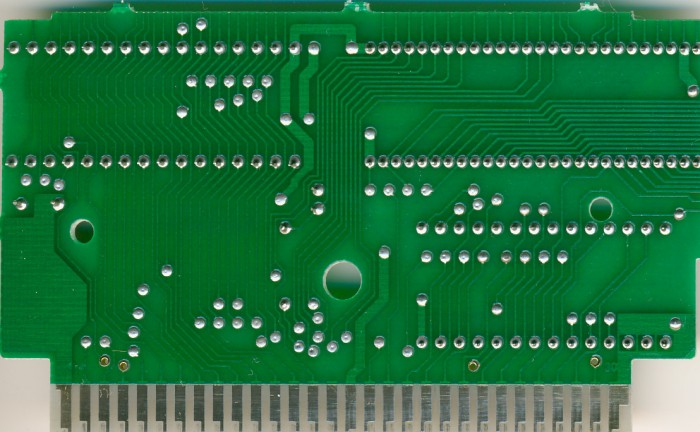

PCB Properties
| Name | FC-00-018 |
|---|---|
| PCB Producer | Irem |
| Manufacturer | Not Specified |
| Mfg Range | 9147 |
| Est First Run | November 1991 |
| PCB Class | IREM-G101 |
| iNES Mapper | 32 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | G-101 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | DBA3A02E | 1 |
| CHR0 | IREM-PM-CHR | 128 KB | 1A50AFD5 | 1 |
| N/A | ROMs Combined | 384 KB | CA094848 | 1 |

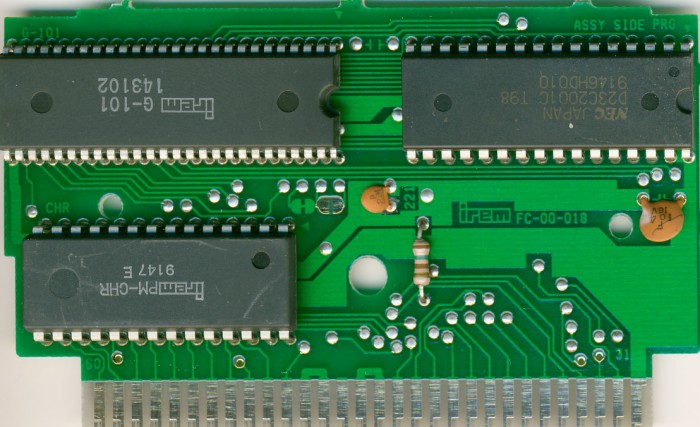

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | NEC | D23C2001C T98 | Mask ROM 256 KB | DIP-32 | 9146 HD010 | 9146 | |
| CHR | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 9147 E | 9147 | |
| G-101 | Mitsubishi | G-101 | Irem G-101 | DIP-52 | 143 102 | 9143 |
