Release Info
| Catalog ID | IF-23 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 27, 1991 |
| Publisher | Irem |
| Developer | Tamtex |
| Players | 1 |
| Peripherals | Famicom Controller |

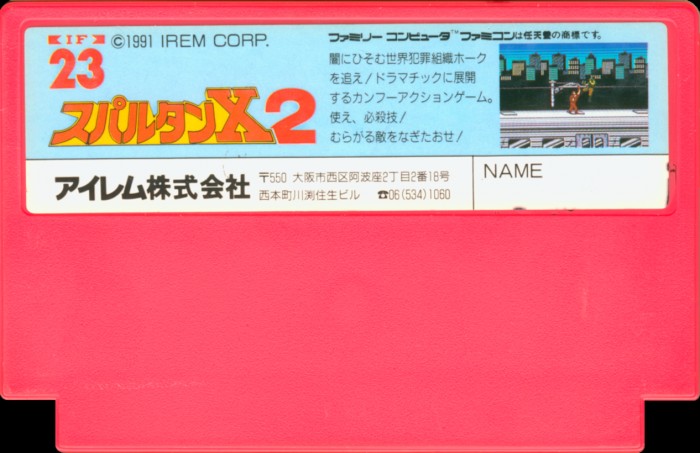

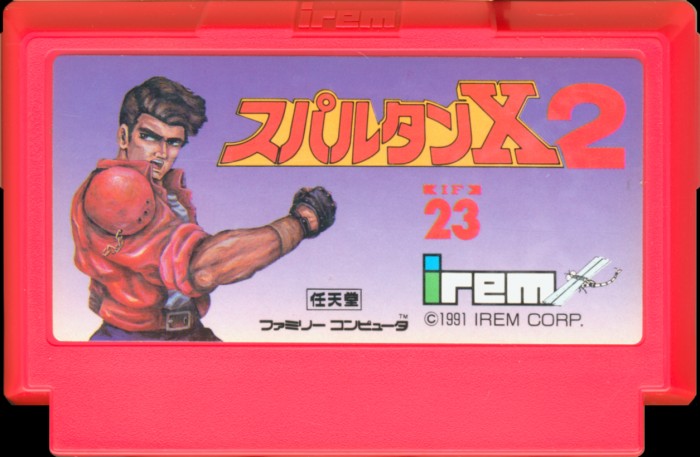

Cart Properties
| Cart Producer | Irem |
|---|---|
| Color | Red |
| Form Factor | New Style |
| Embossed Text | |
| Front Label ID | IF-23 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

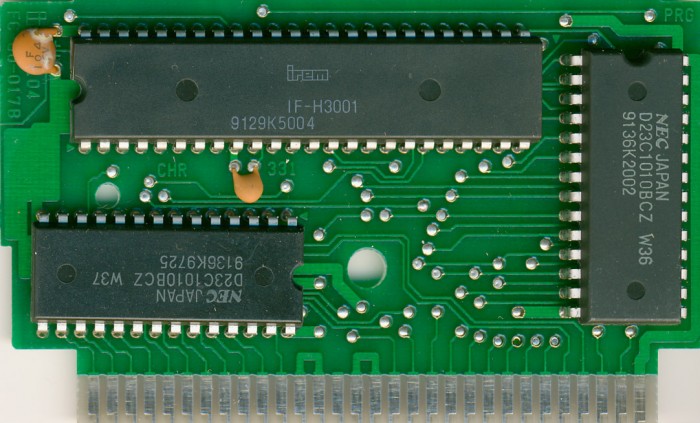

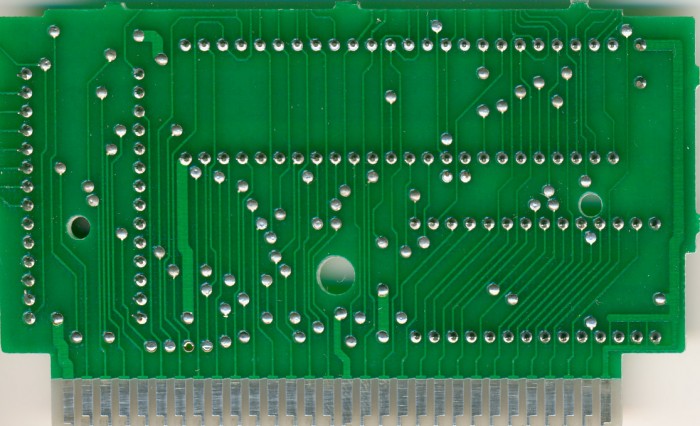

PCB Properties
| Name | FC-00-017B |
|---|---|
| PCB Producer | Irem |
| Manufacturer | Not Specified |
| Mfg Range | 9136 |
| Est First Run | September 1991 |
| PCB Class | IREM-H3001 |
| iNES Mapper | 65 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | IF-H3001 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | D202612B | 1 |
| CHR0 | Not Present | 128 KB | 5D89A3DA | 1 |
| N/A | ROMs Combined | 256 KB | 6F6686B0 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | NEC | D23C1010BCZ W36 | Mask ROM 128 KB | DIP-28 | 9136 K2002 | 9136 | |
| CHR | NEC | D23C1010BCZ W37 | Mask ROM 128 KB | DIP-28 | 9136 K9725 | 9136 | |
| H3001 | NEC | IF-H3001 | Irem H3001 | DIP-48 | 9129 K5004 | 9129 |
