Release Info
| Catalog ID |
IF-08 |
| Region |
Japan (NTSC) |
| Class |
Licensed » 3rd-Party |
| Release Date |
February 5, 1987 |
| Publisher |
Irem |
| Developer |
Compile |
| Players |
1 |
| Peripherals |
Famicom Controller |

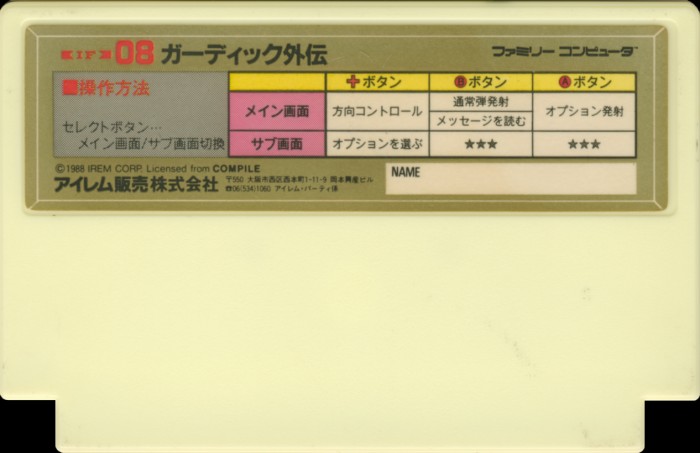

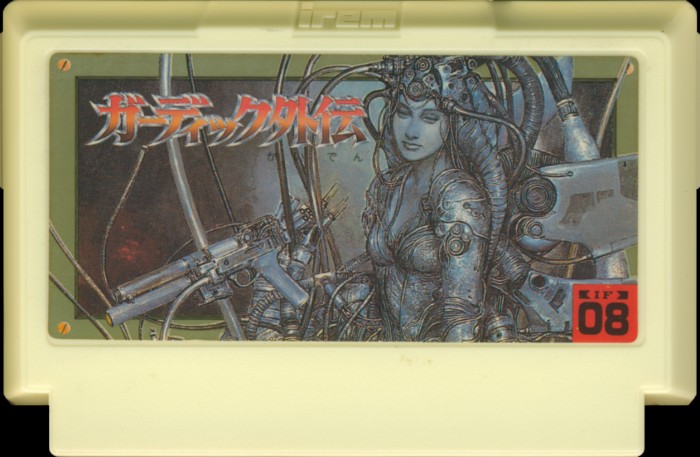

Cart Properties
| Cart Producer |
Irem |
| Color |
Off White |
| Form Factor |
New Style |
| Embossed Text |
|
| Front Label ID |
IF-08 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
LROG016-00 |
| PCB Producer |
Irem |
| Manufacturer |
Sharp |
| Mfg Range |
8804 |
| Est First Run |
January 1988 |
| PCB Class |
IREM-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
Not Present |
128 KB |
DAD88CC5 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PCB |
Sharp |
LROG016
|
Chip-on-Board PCB
|
PCB |
8804
5
|
8804 |
|
| 1M |
__Unknown |
EP1000
|
Bonded ROM
128 KB
|
EPOXY |
|
|
|
| SRAM |
__Unknown |
EP6264
|
SRAM
8 KB
|
EPOXY |
|
|
|
| 161 |
__Unknown |
EP74161
|
74-161 Series
|
EPOXY |
|
|
|
| 32 |
__Unknown |
EP7432
|
74-32 Series
|
EPOXY |
|
|
|
