Release Info
| Catalog ID |
IF-06 |
| Region |
Japan (NTSC) |
| Class |
Licensed » 3rd-Party |
| Release Date |
September 18, 1987 |
| Publisher |
Irem |
| Developer |
Now Production |
| Players |
1 |
| Peripherals |
Famicom Controller |

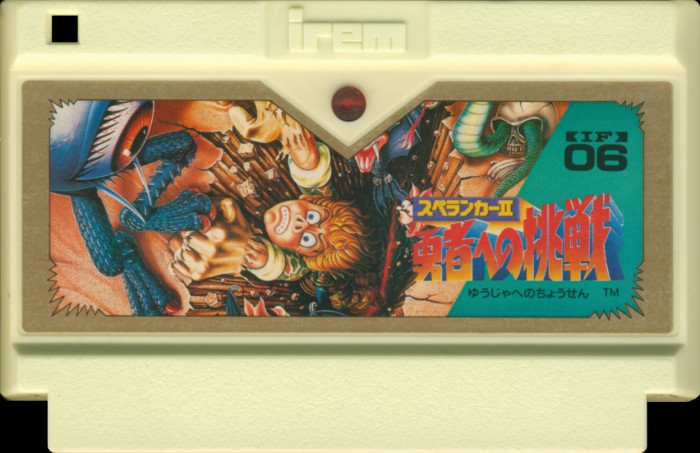

Cart Properties
| Cart Producer |
Irem |
| Color |
Off White |
| Form Factor |
Original w/ LED |
| Embossed Text |
|
| Front Label ID |
IF-06 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
FC-00-002 |
| PCB Producer |
Irem |
| Manufacturer |
Not Specified |
| Mfg Range |
8736 |
| Est First Run |
September 1987 |
| PCB Class |
IREM-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
IREM-SP-2 |
128 KB |
C37F225C |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
|
Sharp |
LH2310
|
Mask ROM
128 KB
|
DIP-28 |
8736
D
|
8736 |
|
|
Sony |
CXK5864P-15
|
SRAM
8 KB
|
DIP-28 |
5J
61
|
8540 |
|
|
Sharp |
LR74HC161
|
74-161 Series
|
DIP-16 |
8728
CA
|
8728 |
|
|
Texas Instruments |
SN74HC32N
|
74-32 Series
|
DIP-14 |
719
J
|
8719 |
|
