Release Info
| Catalog ID | NAM-X79-5900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 3, 1989 |
| Publisher | Namco |
| Developer | Home Data |
| Players | 1 |
| Peripherals | Famicom Controller |

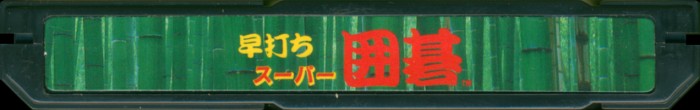

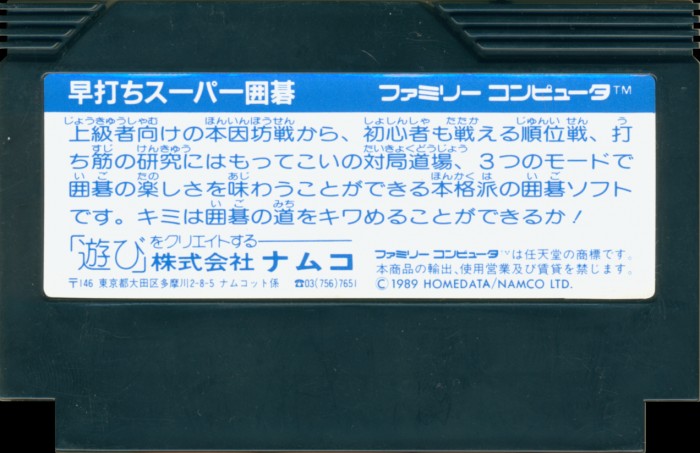

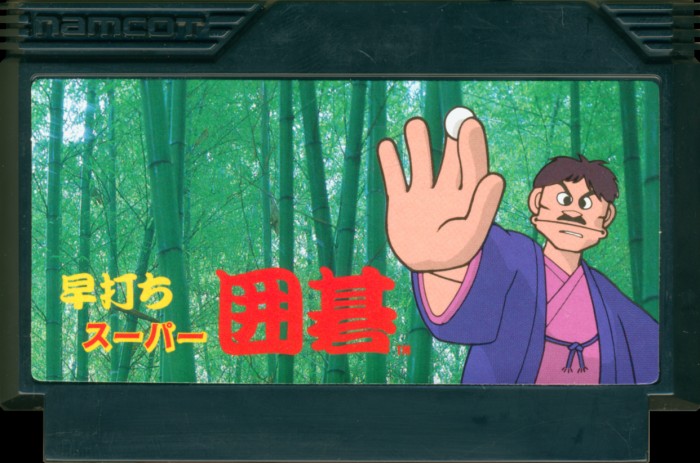

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

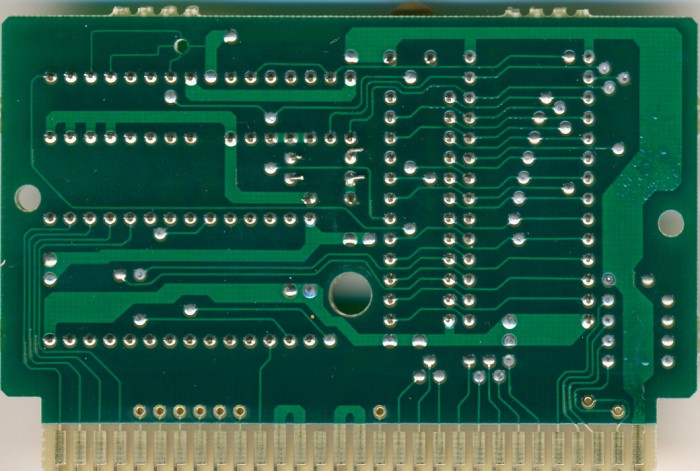

PCB Properties
| Name | UNK-NAMCOT-X79 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8908 |
| Est First Run | February 1989 |
| PCB Class | NAMCOT-CNROM+WRAM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 2 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx10, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | X79F01 | 32 KB | 18F5BFDC | 1 |
| CHR0 | X79F02 | 32 KB | BDC34B2B | 1 |
| N/A | ROMs Combined | 64 KB | FA7E02FA | 1 |

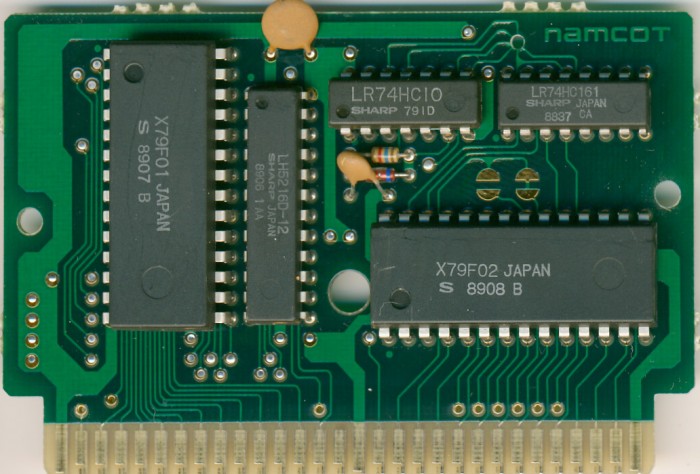

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2355 | Mask ROM 32 KB | DIP-28 | 8907 B | 8907 | ||
| Sharp | LH2355 | Mask ROM 32 KB | DIP-28 | 8908 B | 8908 | ||
| Sharp | LH5216D-12 | SRAM 2 KB | DIP-24 | 8906 1 AA | 8906 | ||
| Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8837 CA | 8837 | ||
| Sharp | LR74HC10 | 74-10 Series | DIP-14 | 91D 7 | 8904 |
