Release Info
| Catalog ID | NAM-DE-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 27, 1987 |
| Publisher | Namco |
| Developer | Now Production |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

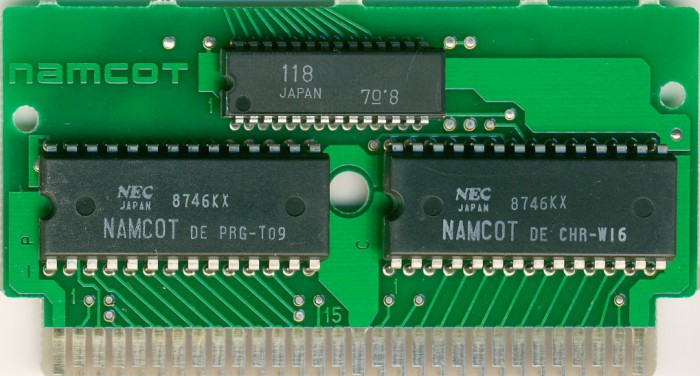

PCB Properties
| Name | 3416 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8746 |
| Est First Run | November 1987 |
| PCB Class | NAMCOT-3416 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 118 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT DE PRG | 128 KB | F9B4C729 | 1 |
| CHR0 | NAMCOT DE CHR | 64 KB | 65A8EDC2 | 1 |
| N/A | ROMs Combined | 192 KB | 22D6D5BD | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8746 KX | 8746 | |
| C | NEC | UPD23C512 | Mask ROM 64 KB | DIP-28 | 8746 KX | 8746 | |
| Panasonic | 118 | Namcot 118 | DIP-28 | 7 | 8744 |
