Release Info
| Catalog ID | NAM-DM-5500 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | April 25, 1989 |
| Publisher | Namco |
| Developer | ISCO |
| Players | 1 |
| Peripherals | Famicom Controller |

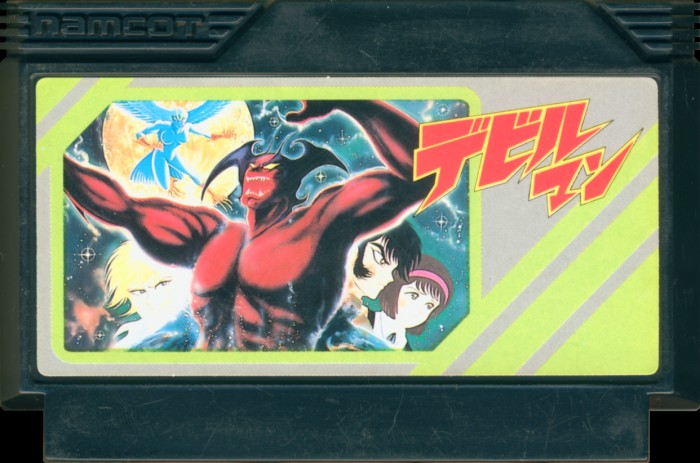

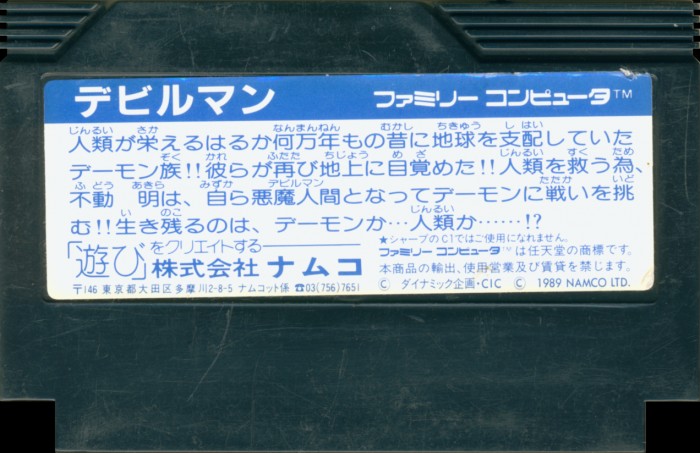

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

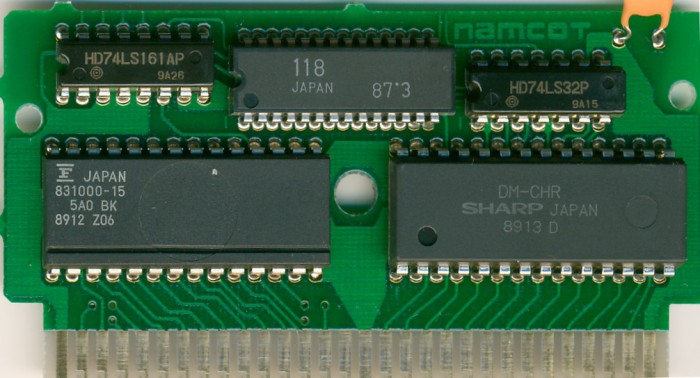

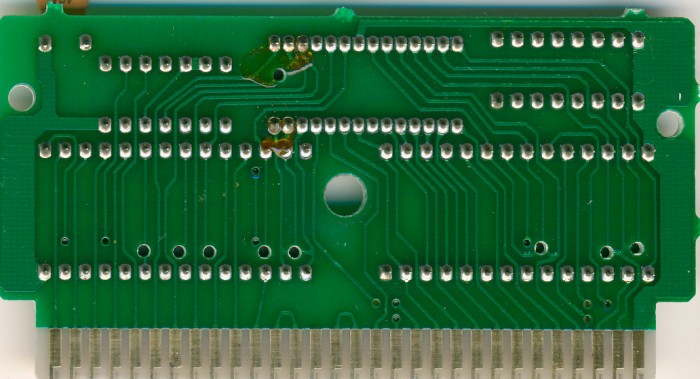

PCB Properties
| Name | UNK-NAMCOT-DM |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8913 |
| Est First Run | March 1989 |
| PCB Class | NAMCOT-3453 |
| iNES Mapper | 154 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 118, 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | C1B6B2A6 | 1 |
| CHR0 | DM-CHR | 128 KB | 13D13564 | 1 |
| N/A | ROMs Combined | 256 KB | D1691028 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Fujitsu | 831000-15 5A0 BK | Mask ROM 128 KB | DIP-28 | 8912 Z06 | 8912 | ||
| Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8913 D | 8913 | ||
| Panasonic | 118 | Namcot 118 | DIP-28 | 87?3 | 8828 | ||
| Hitachi | HD74LS32P | 74-32 Series | DIP-14 | 9A1 5 | 8901 | ||
| Hitachi | HD74LS161P | 74-161 Series | DIP-16 | 9A2 6 | 8902 |
