Release Info
| Catalog ID | KON-RV051 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 27, 1992 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RV051 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

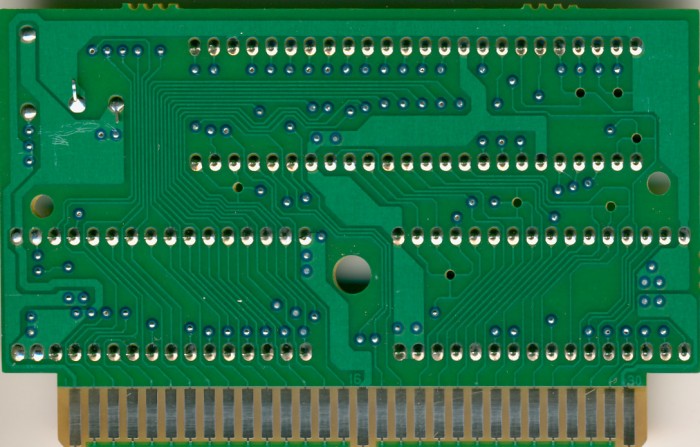

PCB Properties
| Name | 353429 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 9246 |
| Est First Run | November 1992 |
| PCB Class | KONAMI-VRC-7 |
| iNES Mapper | 85 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | VRC7 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RV051J00P | 128 KB | 1AA0479C | 1 |
| CHR0 | RV051J00C | 128 KB | CA162561 | 1 |
| N/A | ROMs Combined | 256 KB | E4362167 | 1 |

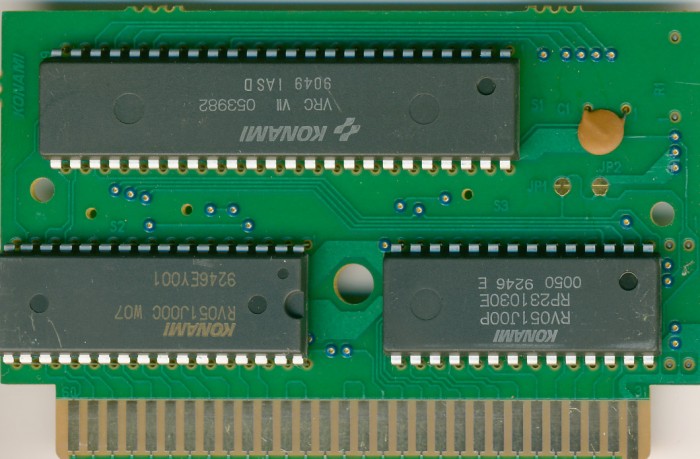

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Ricoh | RP231030E 0050 | Mask ROM 128 KB | DIP-28 | 9246 E | 9246 | ||
| NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 9246 EY001 | 9246 | ||
| _UnkAMS | 053982 VRC VII | Konami VRC VII | DIP-48 | 9049 IASD | 9049 |
