Release Info
| Catalog ID | NES-FH-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1990 |
| Publisher | Data East |
| Developer | Sakata SAS |
| Players | 4 |
| Peripherals | NES Controller |

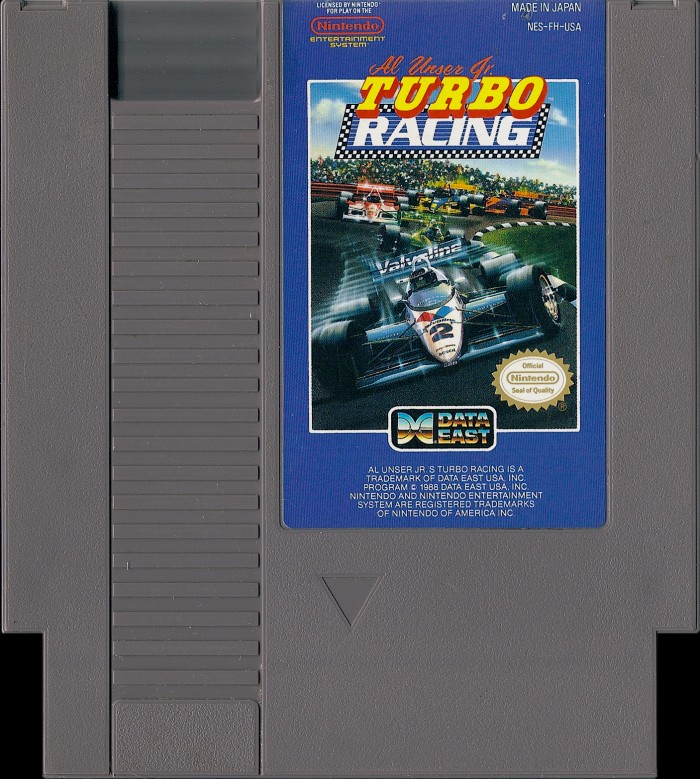

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-FH-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-SKROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9008 - 9011 (2) |
| Est First Run | February 1990 |
| PCB Class | NES-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-FH-0 PRG | 128 KB | E41AE491 | 2 |
| CHR0 | NES-FH-0 CHR | 128 KB | 5F937051 | 2 |
| N/A | ROMs Combined | 256 KB | 5BC9D7A1 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5420 | Mask ROM 128 KB | DIP-28 | 0CM 7C | 9011 | |
| U2 CHR | Ricoh | RP231039D 0058 | Mask ROM 128 KB | DIP-32 | 0CB 77 | 9009 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9004 5 CA | 9004 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9009 7 AA | 9009 | |
| U5 W-RAM | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 0A 15E | 9001 |
