Release Info
| Catalog ID | KON-RC840 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | January 5, 1990 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

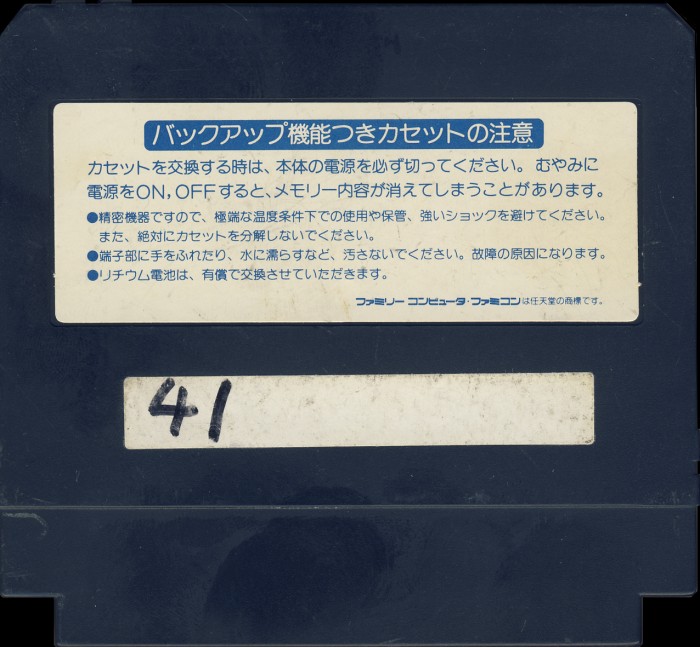

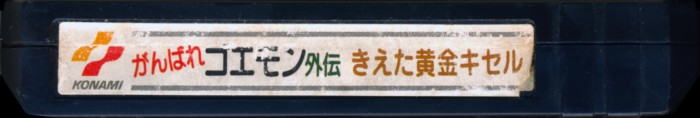

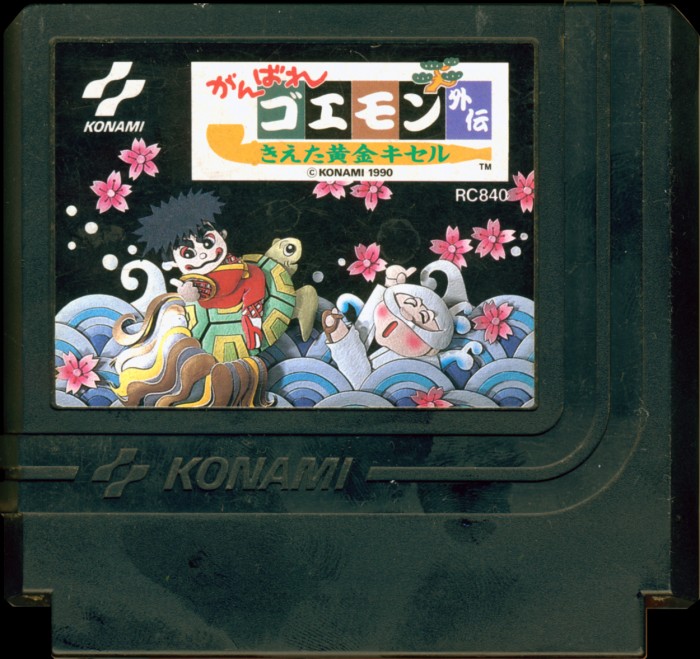

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | RC840 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

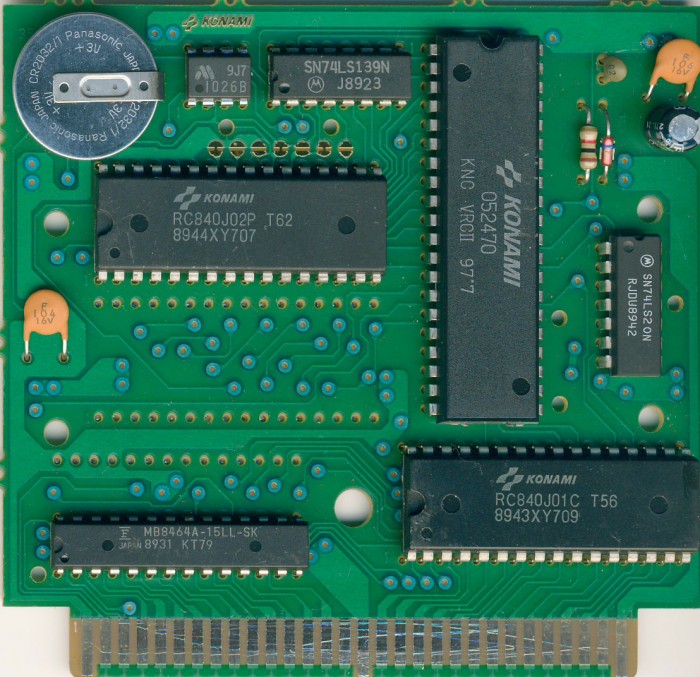

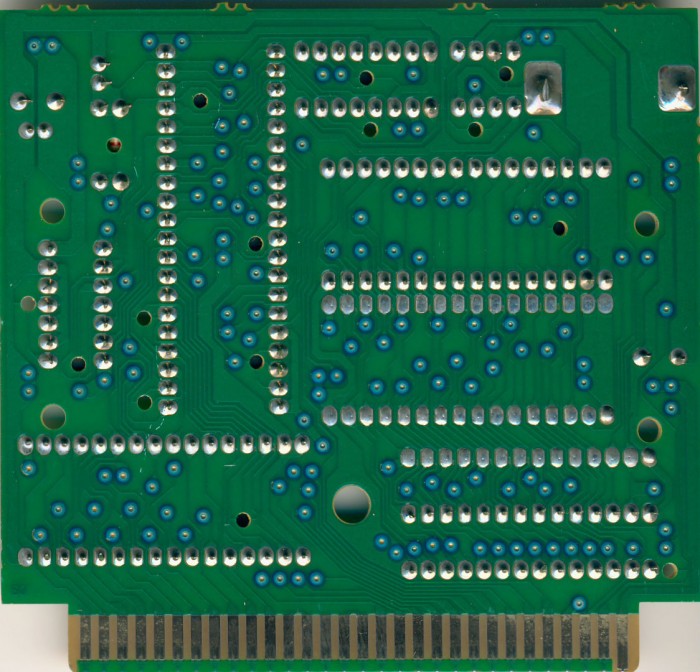

PCB Properties
| Name | 351948 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8944 |
| Est First Run | November 1989 |
| PCB Class | KONAMI-VRC-2 |
| iNES Mapper | 25 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx20, MM1026, VRC2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC840J02P | 256 KB | 8360FA88 | 1 |
| CHR0 | RC840J01C | 256 KB | 99A563FE | 1 |
| N/A | ROMs Combined | 512 KB | EB92B32A | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 8944 XY707 | 8944 | ||
| NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 8943 XY709 | 8943 | ||
| Fujitsu | MB8464A-15LL-SK | SRAM 8 KB | SDIP-28 | 8931 KT79 | 8931 | ||
| Panasonic | 052470 VRC II KNC | Konami VRC II | DIP-40 | 97?7 | 8929 | ||
| Motorola | SN74LS139N | 74-139 Series | DIP-16 | 8923 J | 8923 | ||
| Motorola | SN74LS20N | 74-20 Series | DIP-14 | 8942 RJDU | 8942 | ||
| Mitsumi | 1026B | MM1026 | DIP-8 | 9J 7 | 8940 |
