Release Info
| Catalog ID | EFC-I5 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 15, 1992 |
| Publisher | Enix |
| Developer | Random House |
| Players | 1 |
| Peripherals | Famicom Controller |

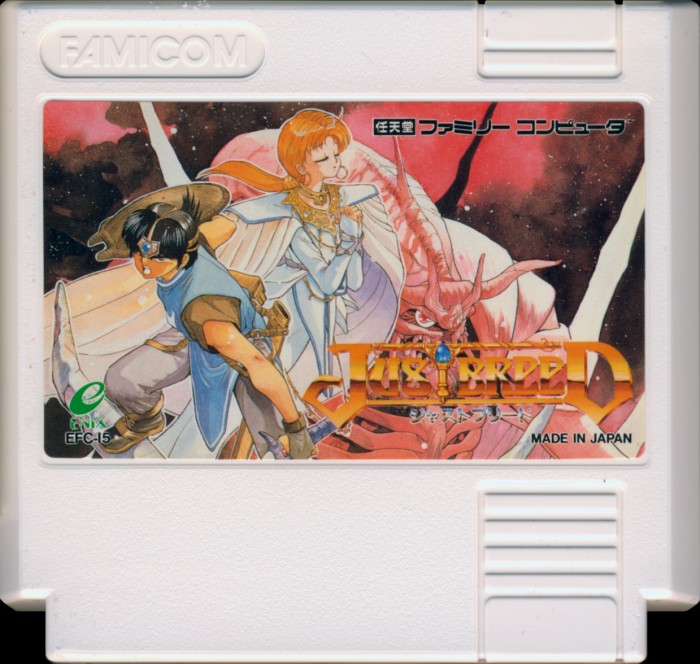

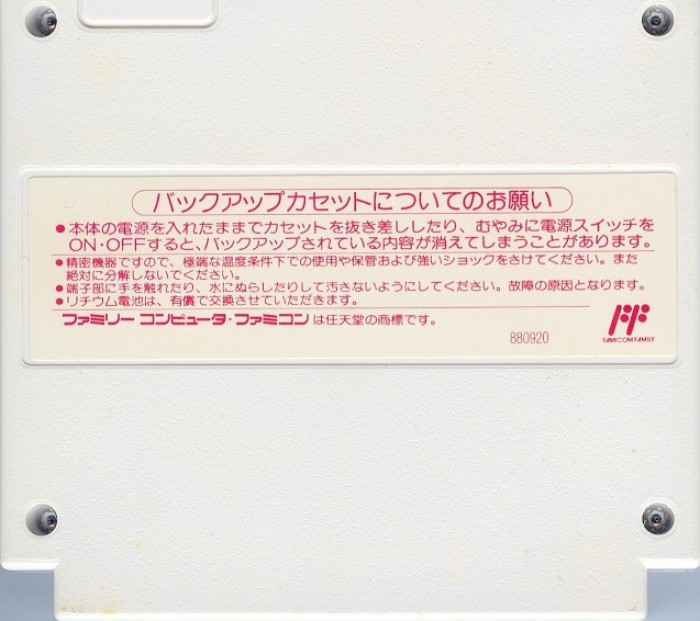

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | EFC-I5 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

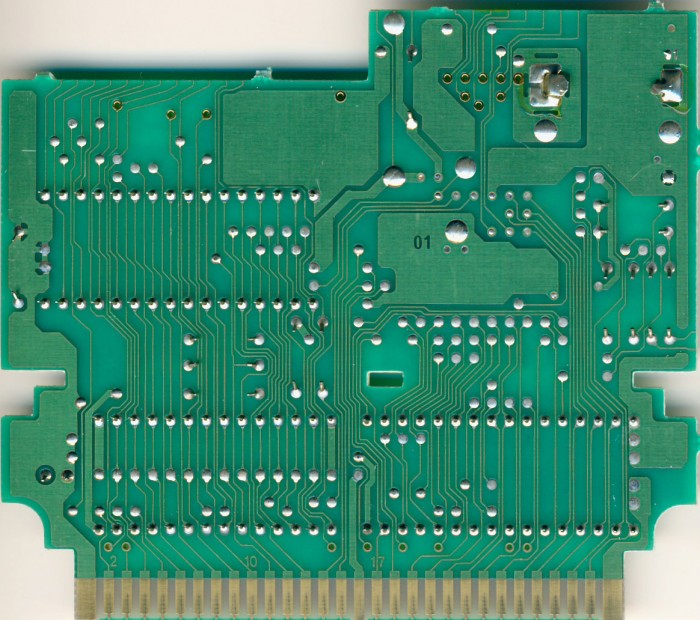

PCB Properties
| Name | HVC-EKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9246 - 9246 (3) |
| Est First Run | November 1992 |
| PCB Class | HVC-EKROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC5A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | EFC-I5-0 PRG | 512 KB | 5D9D9891 | 2 |
| CHR0 | EFC-I5-0 CHR | 256 KB | F5449802 | 2 |
| N/A | ROMs Combined | 768 KB | 9CBADC25 | 2 |

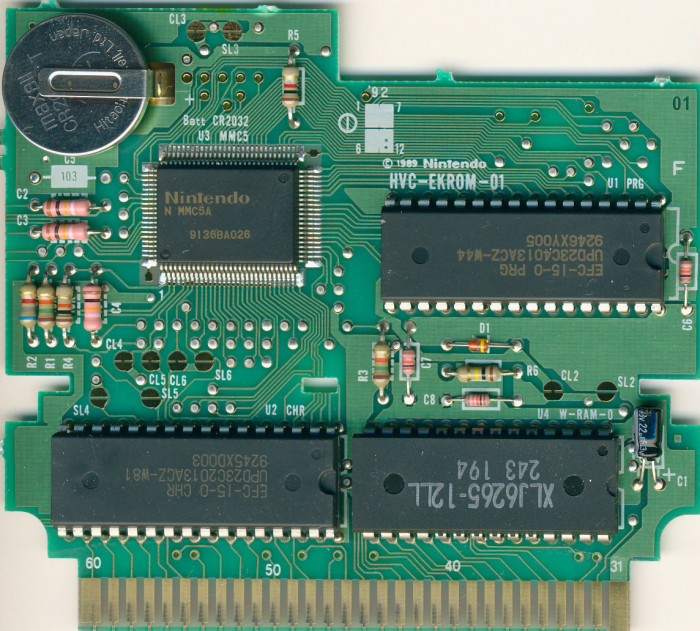

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C4013ACZ W44 | Mask ROM 512 KB | DIP-32 | 9246 XY005 | 9246 | |
| U2 CHR | NEC | UPD23C2013ACZ W81 | Mask ROM 256 KB | DIP-32 | 9245 XD003 | 9245 | |
| U3 MMC5 | NEC | MMC5A | Nintendo MMC5 | PQFP-100 | 9136 BA026 | 9136 | |
| U4 W-RAM-0 | Rohm | XLJ6265-12LL | SRAM 8 KB | DIP-28 | 243 194 | 9243 |
