Release Info
| Catalog ID | KSC-DF |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 28, 1988 |
| Publisher | Kemco |
| Developer | Kemco |
| Players | 2 |
| Peripherals | Famicom Controller |

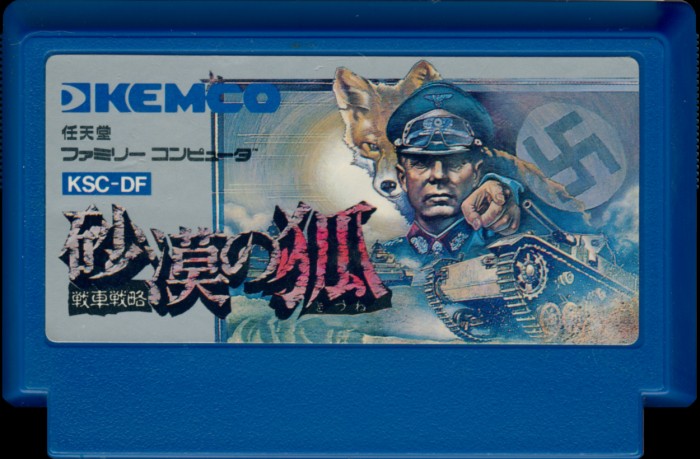

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KSC-DF |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

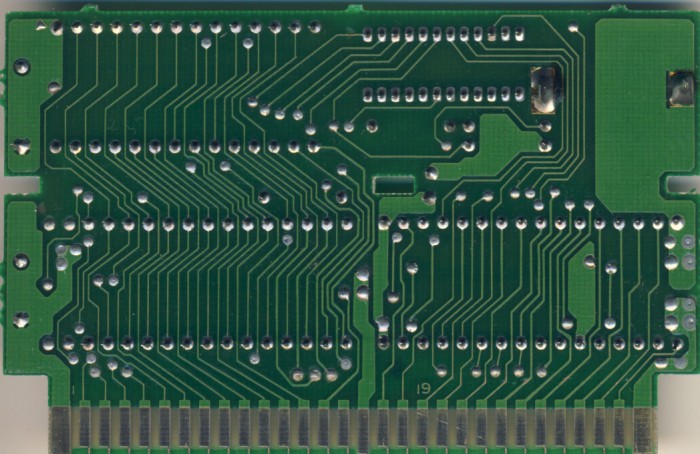

PCB Properties
| Name | HVC-SKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8814 |
| Est First Run | April 1988 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KSC-DF-0 PRG | 128 KB | 93DC3C82 | 1 |
| CHR0 | KSC-DF-0 CHR | 128 KB | 8FEDD4A7 | 1 |
| N/A | ROMs Combined | 256 KB | 828F8F1F | 1 |

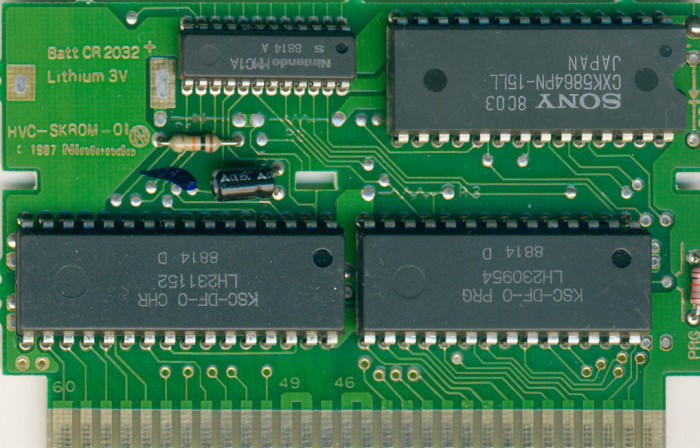

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2309 54 | Mask ROM 128 KB | DIP-28 | 8814 D | 8814 | |
| CHR | Sharp | LH2311 52 | Mask ROM 128 KB | DIP-32 | 8814 D | 8814 | |
| MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8814 A | 8814 | |
| W-RAM | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 8C 03 | 8809 |
