Release Info
| Catalog ID | CBS-QT |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 4, 1989 |
| Publisher | CBS / Sony Group |
| Developer | Toaplan |
| Players | 1 |
| Peripherals | Famicom Controller |

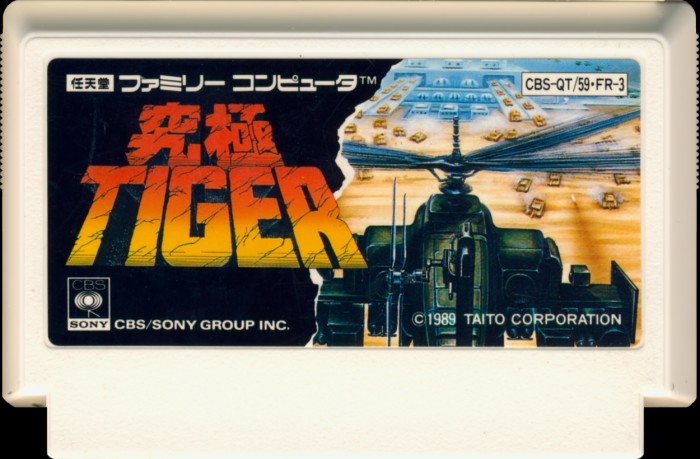

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CBS-QT |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

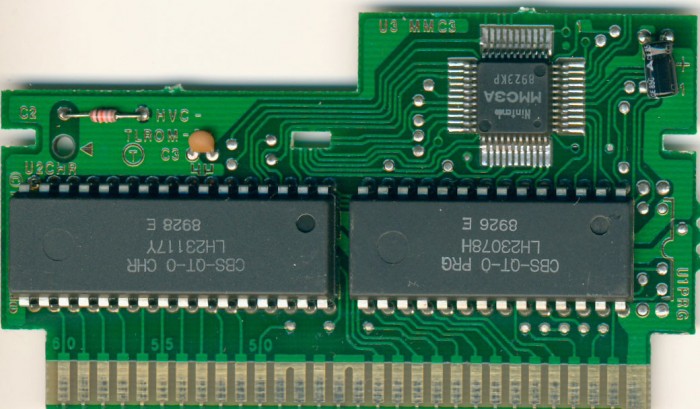

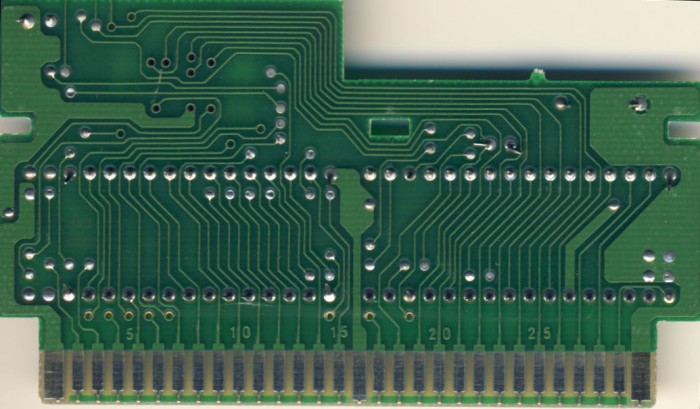

PCB Properties
| Name | HVC-TLROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8928 |
| Est First Run | July 1989 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CBS-QT-0 PRG | 128 KB | 408D72DB | 1 |
| CHR0 | CBS-QT-0 CHR | 128 KB | 5EBF2DF9 | 1 |
| N/A | ROMs Combined | 256 KB | 091ED5A9 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2307 8H | Mask ROM 128 KB | DIP-28 | 8926 E | 8926 | |
| U2 CHR | Sharp | LH2311 7Y | Mask ROM 128 KB | DIP-32 | 8928 E | 8928 | |
| U3 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8923 KP | 8923 |
