Release Info
| Catalog ID | NES-ZZ-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed » Multi-cart |
| Release Date | November 1988 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

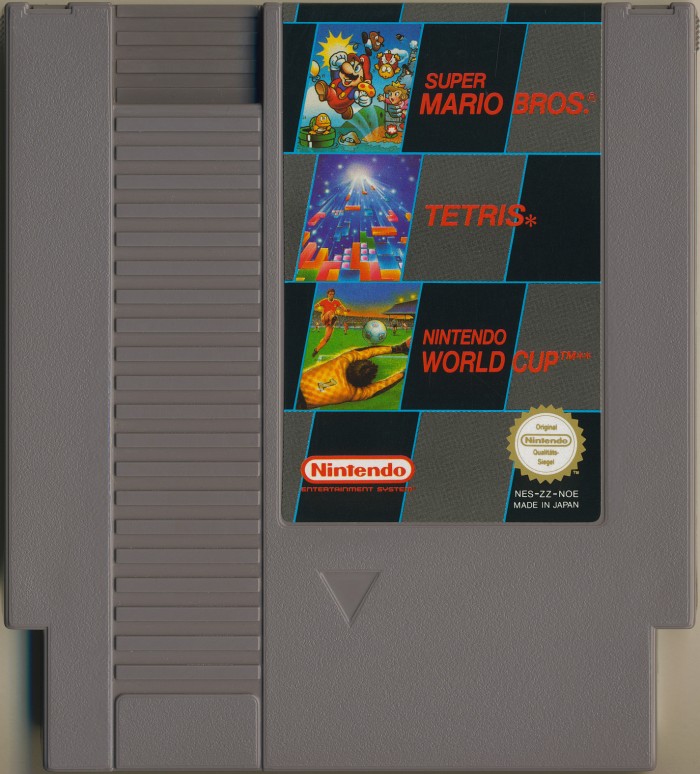

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-ZZ-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

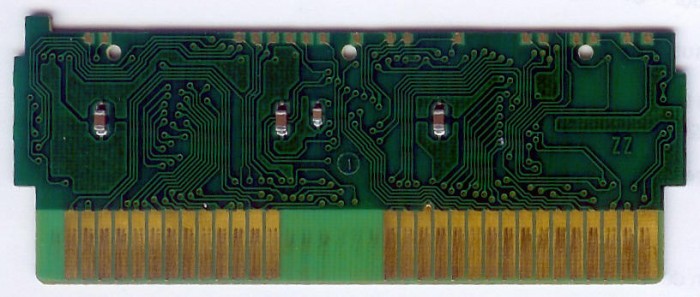

PCB Properties
| Name | ZZ |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Sharp |
| Mfg Range | 9207 |
| Est First Run | February 1992 |
| PCB Class | PAL-ZZ |
| iNES Mapper | 37 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | |
| Hardware | 74xx00, 74xx161, MMC3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | 7EEF434C | 1 |
| CHR0 | Not Present | 256 KB | BD06932A | 3 |
| N/A | ROMs Combined | 512 KB | F46EF39A | 1 |

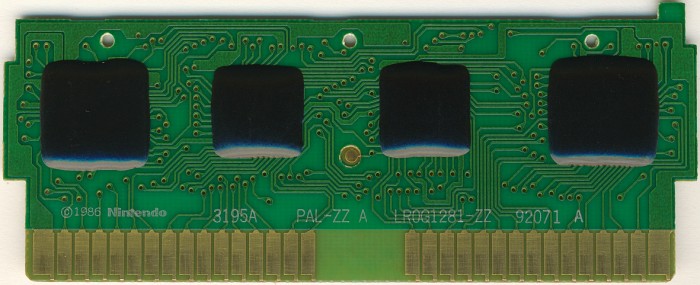

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Sharp | LROG1281 ZZ | Chip-on-Board PCB | PCB | 9207 1 A | 9207 | |
| __Unknown | EP2000 | Bonded ROM 256 KB | EPOXY | ||||
| __Unknown | EP2000 | Bonded ROM 256 KB | EPOXY | ||||
| __Unknown | EP3195A | Nintendo CIC | EPOXY | ||||
| __Unknown | EPMMC3 | Nintendo MMC3 | EPOXY | ||||
| __Unknown | EP74161 | 74-161 Series | EPOXY | ||||
| __Unknown | EP7400 | 74-00 Series | EPOXY |
