Release Info
| Catalog ID | SUN-GRM-6500 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 14, 1990 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | Famicom Controller |

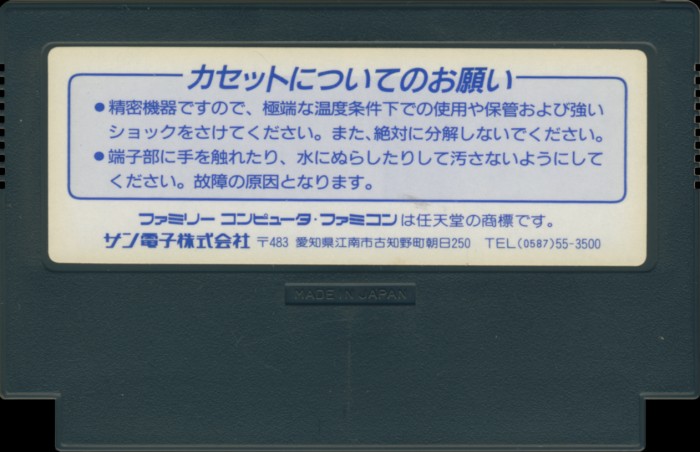

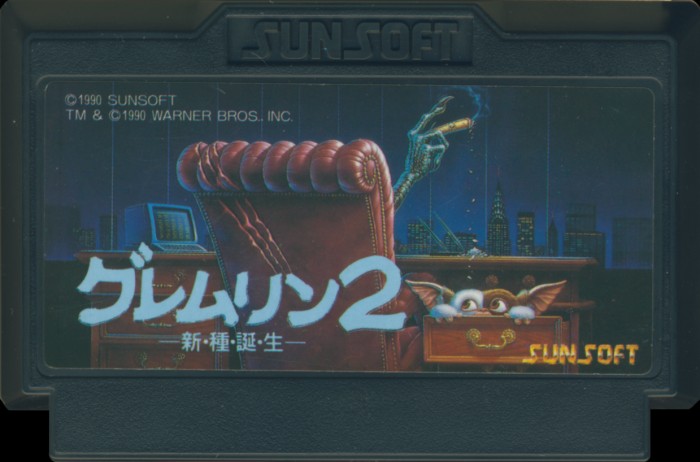

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

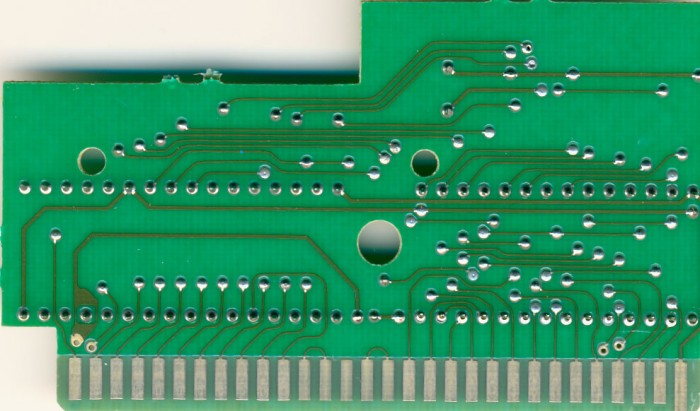

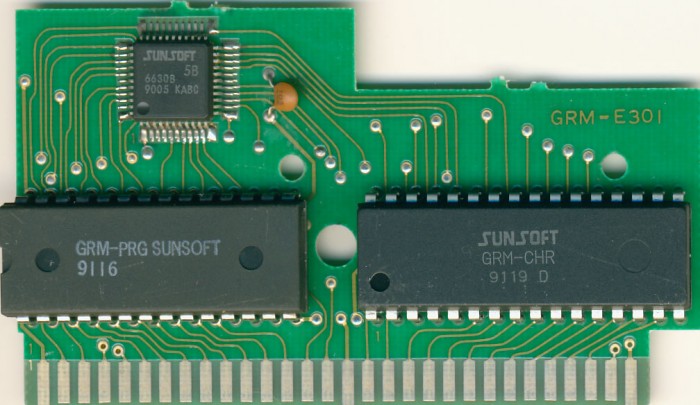

PCB Properties
| Name | GRM-E301 |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 9119 |
| Est First Run | May 1991 |
| PCB Class | SUNSOFT-FME-7 |
| iNES Mapper | 69 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | Sunsoft-5B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | GRM-PRG | 128 KB | 11FC8686 | 1 |
| CHR0 | GRM-CHR | 256 KB | A13B9D3A | 1 |
| N/A | ROMs Combined | 384 KB | 0897021B | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| __Unknown | 231002 | Mask ROM 128 KB | DIP-28 | 9116 | 9116 | ||
| Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9119 D | 9119 | ||
| _UnkAMS | SUNSOFT-5B | Sunsoft-5 | TQFP-44 | 9005 KABC | 9005 | 6630B |
