Release Info
| Catalog ID | SUN-DOD-6500 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 28, 1992 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

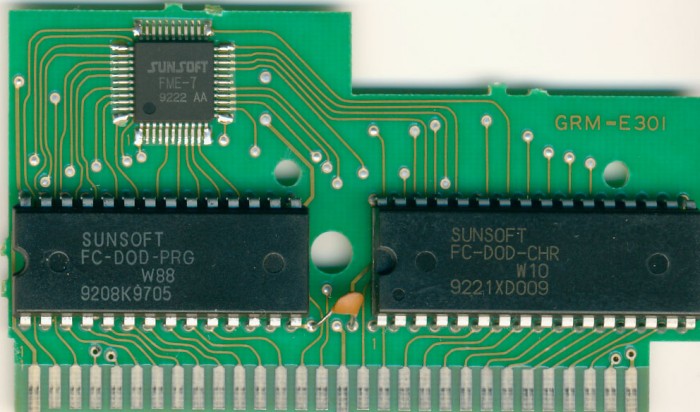

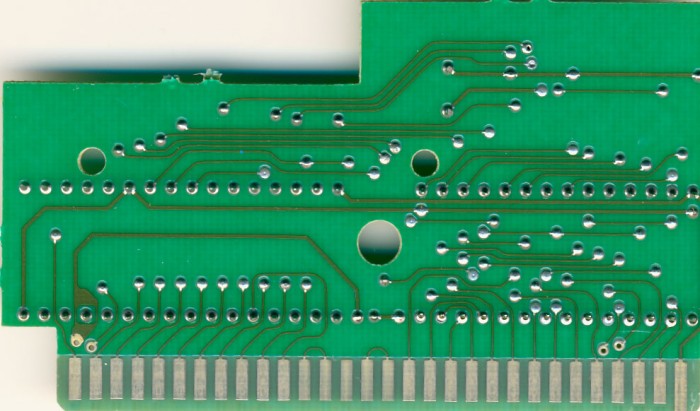

PCB Properties
| Name | GRM-E301 |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 9222 |
| Est First Run | June 1992 |
| PCB Class | SUNSOFT-FME-7 |
| iNES Mapper | 69 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | FME-7 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | FC-DOD-PRG | 128 KB | 9B4F0405 | 1 |
| CHR0 | FC-DOD-CHR | 256 KB | 17C47018 | 1 |
| N/A | ROMs Combined | 384 KB | 4C049CFE | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 9208 K9705 | 9208 | ||
| NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 9221 XD009 | 9221 | ||
| Sharp | FME-7 | Sunsoft FME-7 | TQFP-44 | 9222 AA | 9222 |
