Release Info
| Catalog ID |
IF-07 |
| Region |
Japan (NTSC) |
| Class |
Licensed » 3rd-Party |
| Release Date |
October 2, 1987 |
| Publisher |
Irem |
| Developer |
Irem |
| Players |
2 |
| Peripherals |
Famicom Controller |
Cart Properties
| Cart Producer |
Irem |
| Color |
Off White |
| Form Factor |
Original wo/ LED |
| Embossed Text |
|
| Front Label ID |
IF-07 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
|
PCB Properties
| Name |
FC-00-003 |
| PCB Producer |
Irem |
| Manufacturer |
Not Specified |
| Mfg Range |
8739 |
| Est First Run |
September 1987 |
| PCB Class |
IREM-TAM-S1 |
| iNES Mapper |
97 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
TAM-S1 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
Not Present |
256 KB |
D1397940 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
|
Sharp |
LH5322
06
|
Mask ROM
256 KB
|
DIP-32 |
8739
D
|
8739 |
|
|
NEC |
D4364C-15L
|
SRAM
8 KB
|
DIP-28 |
8514
EX703
|
8514 |
|
|
Fujitsu |
TAM-S1
|
Irem TAM-S1
|
DIP-28 |
8732
C26
|
8732 |
|

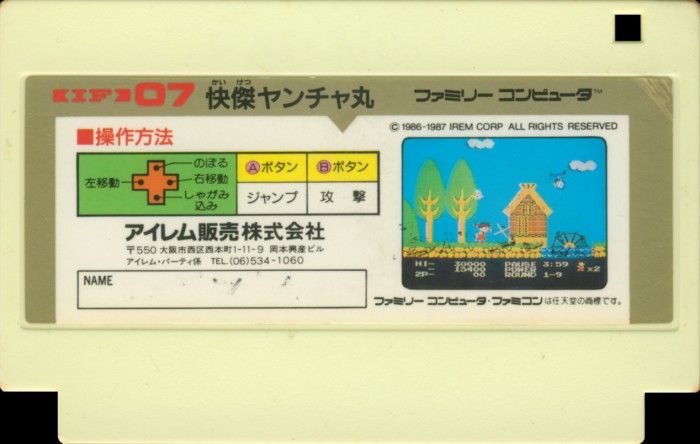

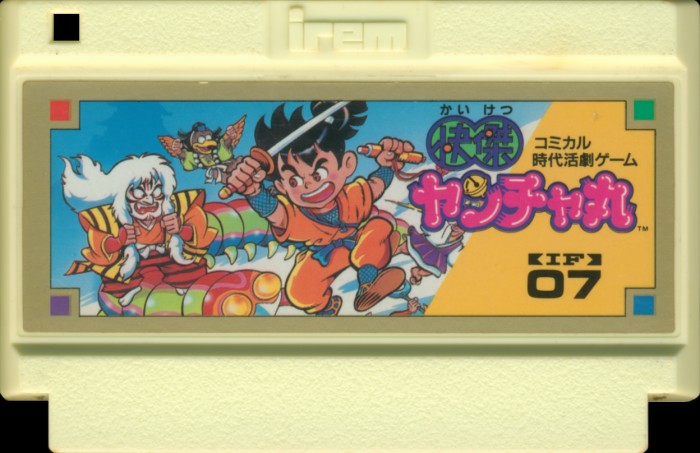

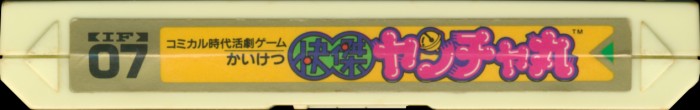

Additional Images
