Release Info
| Catalog ID | HSP-07 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 27, 1987 |
| Publisher | Login Soft |
| Developer | Pax Softnica |
| Players | 1 |
| Peripherals | Famicom Controller |

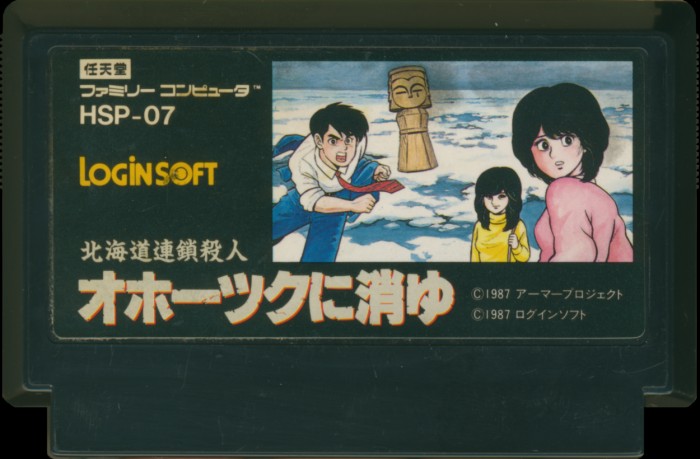

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HSP-07 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 05 |

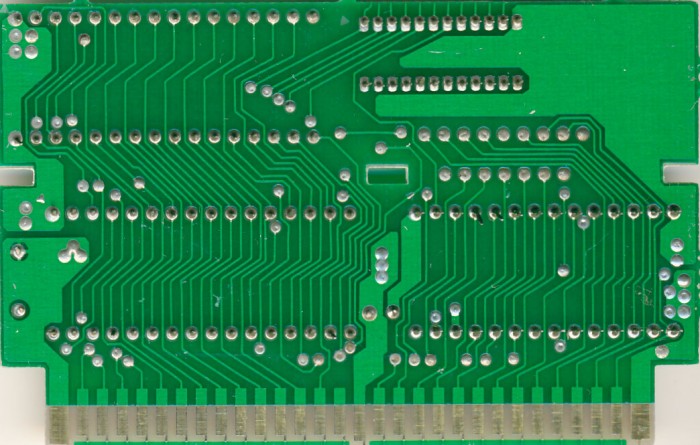

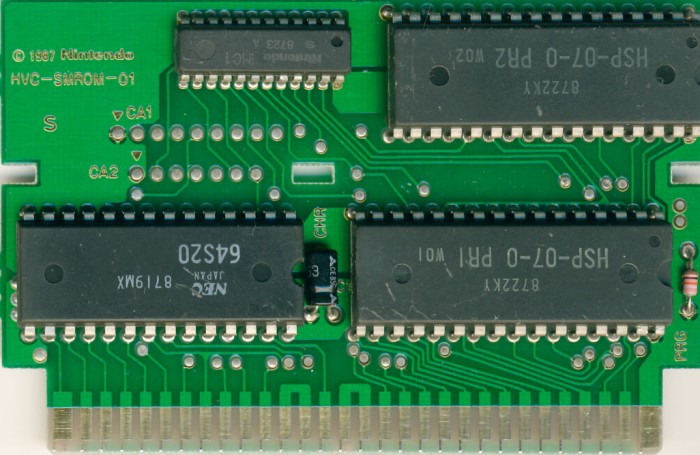

PCB Properties
| Name | HVC-SMROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8723 |
| Est First Run | June 1987 |
| PCB Class | HVC-SMROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HSP-07-0 PR1 | 128 KB | 803519D0 | 1 |
| PRG1 | HSP-07-0 PR2 | 128 KB | 51867A62 | 1 |
| N/A | ROMs Combined | 256 KB | 992AF039 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8722 KY | 8722 | |
| NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8722 KY | 8722 | ||
| CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8719 MX | 8719 | |
| Sharp | MMC1 | Nintendo MMC1 | DIP-24 | 8723 A | 8723 |
