Release Info
| Catalog ID | GTS-GB |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 22, 1986 |
| Publisher | Tokuma Shoten |
| Developer | Activision |
| Players | 1 |
| Peripherals | Famicom Controller |

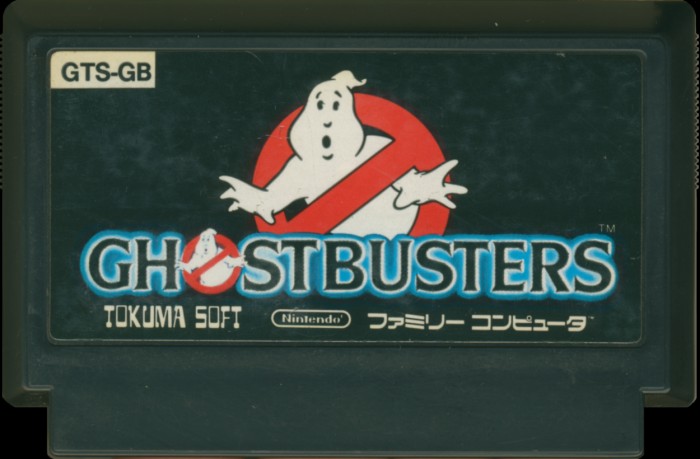

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | GTS-GB |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

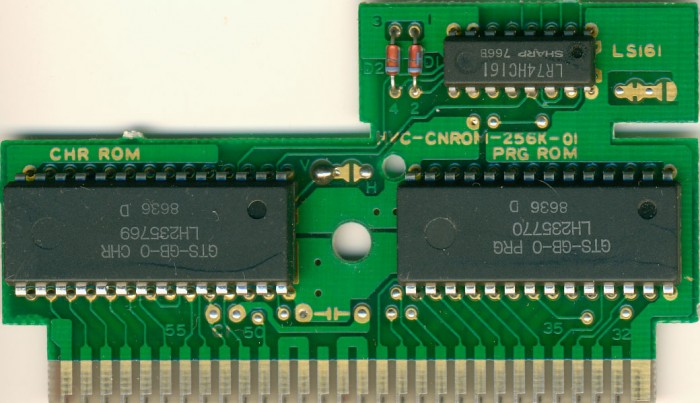

PCB Properties
| Name | HVC-CNROM-256K-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8636 |
| Est First Run | September 1986 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | GTS-GB-0 PRG | 32 KB | 6E4C0641 | 1 |
| CHR0 | GTS-GB-0 CHR | 32 KB | DC6D8B34 | 1 |
| N/A | ROMs Combined | 64 KB | 4057C51B | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2357 70 | Mask ROM 32 KB | DIP-28 | 8636 D | 8636 | |
| CHR ROM | Sharp | LH2357 69 | Mask ROM 32 KB | DIP-28 | 8636 D | 8636 | |
| LS161 | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 66B 7 | 8624 |
