Release Info
| Catalog ID | KON-RC806 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 27, 1985 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Konami HyperShot,Famicom Controller |
Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC806 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

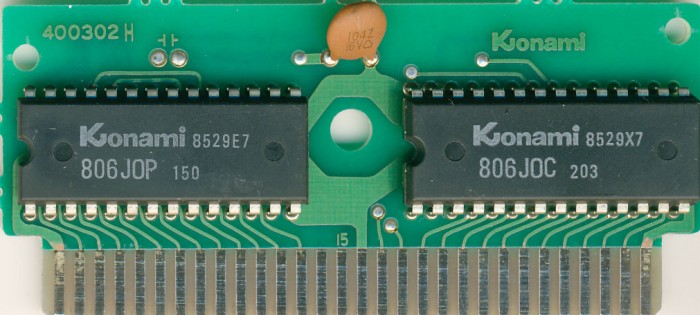

PCB Properties
| Name | 400302H |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8529 - 8530 (4) |
| Est First Run | July 1985 |
| PCB Class | KONAMI-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 806J0P | 16 KB | AC98CD70 | 3 |
| CHR0 | 806J0C | 8 KB | 51025F6B | 4 |
| N/A | ROMs Combined | 24 KB | 915A53A7 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C128 | Mask ROM 16 KB | DIP-28 | 8529 E7 | 8529 | ||
| NEC | UPD23C64 | Mask ROM 8 KB | DIP-28 | 8529 X7 | 8529 |
