Release Info
| Catalog ID |
HSP-BS |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
October 16, 1992 |
| Publisher |
ASCII |
| Developer |
ASCII |
| Players |
2 |
| Peripherals |
,Famicom Controller |

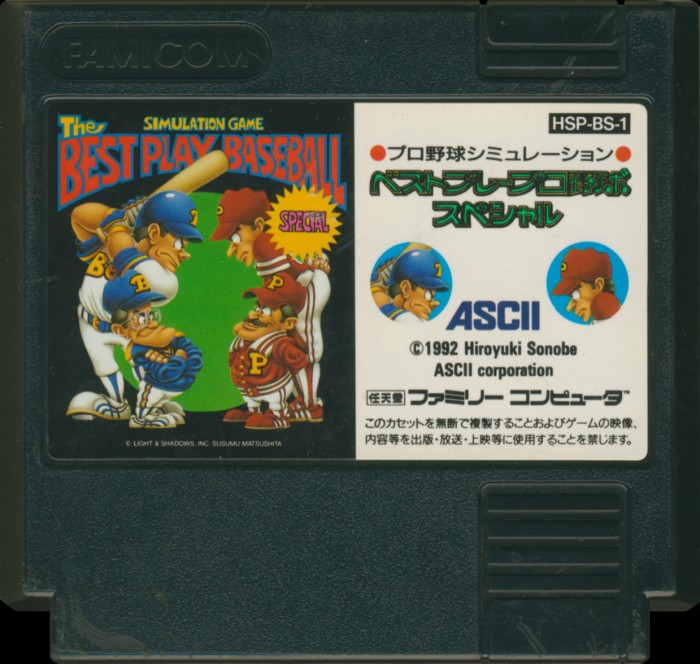

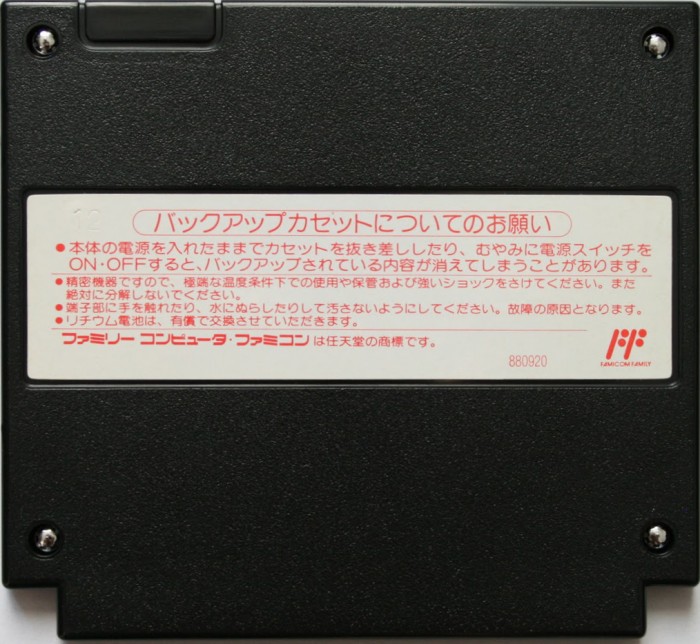

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Black |
| Form Factor |
Large w/ Famicom Logo |
| Embossed Text |
|
| Front Label ID |
HSP-BS-1 |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-SXROM-01 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9247 |
| Est First Run |
November 1992 |
| PCB Class |
HVC-SXROM |
| iNES Mapper |
1 |
| Mirroring |
Mapper Ctrl |
| Battery present |
Yes |
| WRAM |
32 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx04, MMC1B2 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
HSP-BS-1 PRG |
256 KB |
C3DE7C69 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG-ROM |
Fujitsu |
MB832000
|
Mask ROM
256 KB
|
DIP-32 |
9247
T00
|
9247 |
|
| U2 CHR-RAM |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
9228
EJ
|
9228 |
|
| U3 MMC1 |
Sharp |
MMC1B2
|
Nintendo MMC1
|
DIP-24 |
9244
5 A 170
|
9244 |
|
| U4 W-RAM |
Hyundai |
HY62256ALLP-10
|
SRAM
32 KB
|
DIP-28 |
9240
B
|
9240 |
|
| U5 HCU04 |
Texas Instruments |
SN74HCU04N
|
74-04 Series
|
DIP-14 |
240
ER
|
9240 |
|
